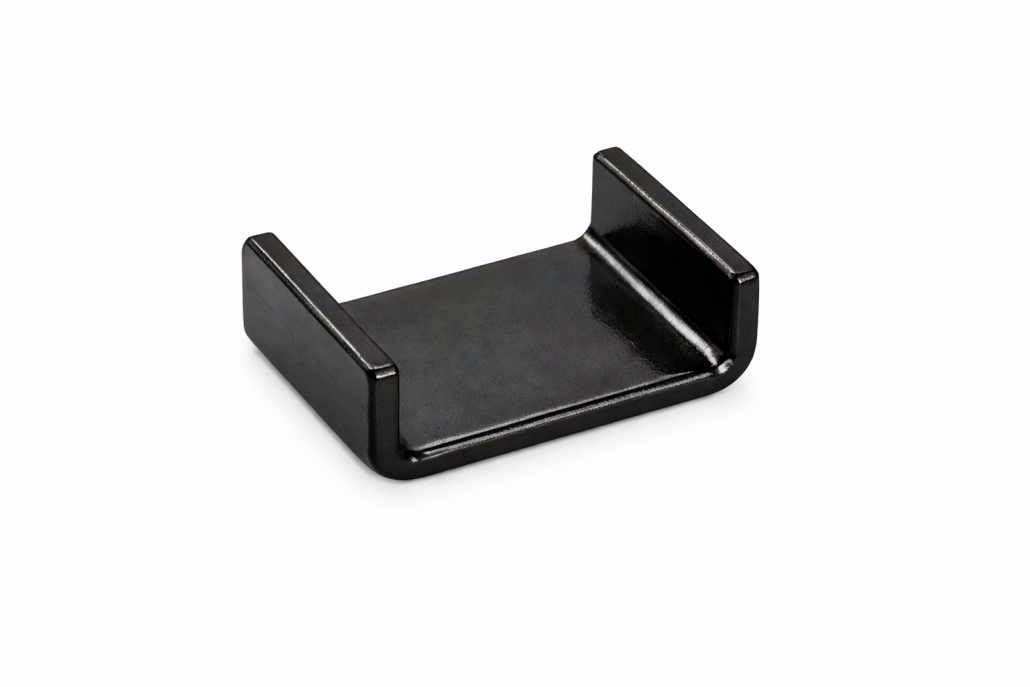

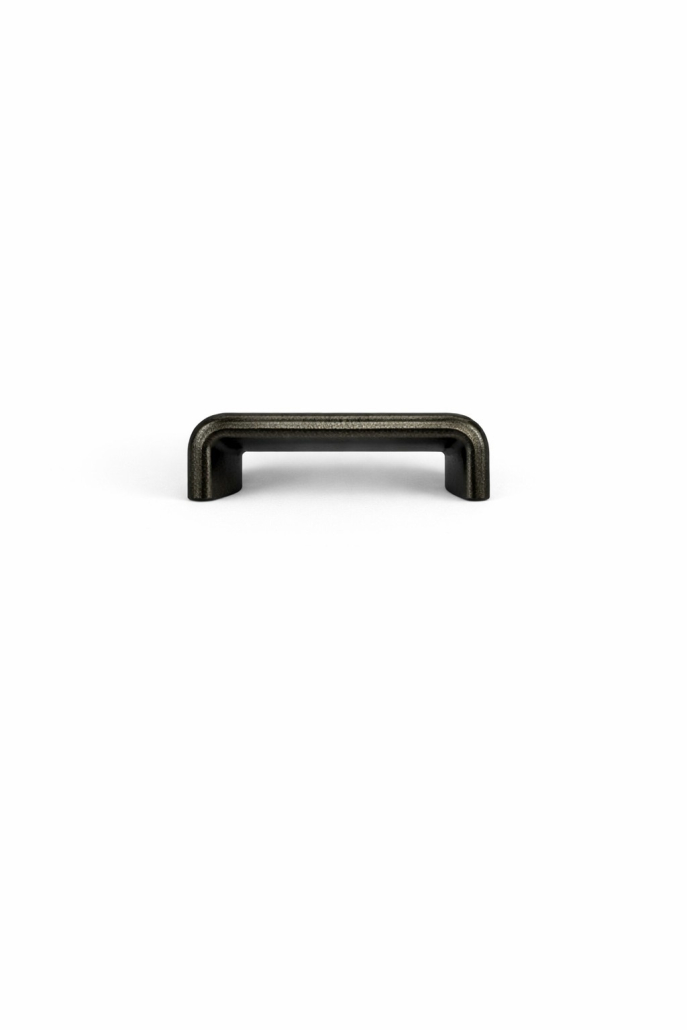

KPB1 Single Gate Bracket – Small U-Shaped Channel Fixing Bracket (32 × 27 mm, 3 mm Thick)
-
Manufactured in the UK -
3mm Pressed Steel
-
Bulk Discounts Available
-
Fast Nationwide Delivery
Dispatch:
2-3 Days
›
Weight per unit
• 0.03 kg
Minimum Order:
50 units
Total:
Each:
Each:
Weight per unit
• 0.03 kg
Minimum Order:
50 units
Total:
Each:
Each:
| Quantity | Discount (%) | Price |
|---|---|---|
| 50 | — | £0.98 |
| 100 | 10 % | £0.88 |
| 500+ | 20 % | £0.78 |
Are Also Known As
- U bracket
- U-shaped bracket
- Steel U bracket
- Channel bracket
- U-clip bracket
- Tube grip bracket
- Tube support bracket

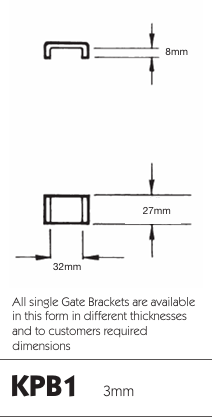

Technical specs
- Width (channel opening): 32 mm
- Leg depth: 27 mm
- Strip width: 8 mm
- Thickness: 3mm
- Profile: U-Shaped
Product Overview
The KPB1 is a compact pressed steel U-bracket used to secure tube, bar, or rail sections in pallet frames, warehouse gates, and fabricated steel assemblies. The 32 × 27 mm U-channel profile grips the section on three sides, providing a stable fixing point that resists lateral movement far better than a flat plate bracket.
Pressed from 3 mm mild steel to consistent tolerances, the KPB1 is a standard component in light to medium-duty pallet gate construction. The pre-drilled fixing holes accept standard bolts or screws, and the low-profile channel sits cleanly against the section without adding unnecessary bulk to the assembly. It is well-suited to applications where fixing space is limited and a compact, reliable bracket is needed.
