Steel Pallet Feet Retainer Plate – KPF140 (52sq, 14 mm Height)
-
Manufactured in the UK -
3mm Pressed Mild Steel
-
Bulk Discounts Available
-
Fast Nationwide Delivery
Dispatch:
2-3 Days
›
Weight per unit
• 0.04 kg
Minimum Order:
12 units
Total:
Each:
Each:
Weight per unit
• 0.04 kg
Minimum Order:
12 units
Total:
Each:
Each:
| Quantity | Discount (%) | Price |
|---|---|---|
| 12 | — | £2.58 |
| 100 | 10 % | £2.32 |
| 500 | 20 % | £2.06 |
| 1,000 | 25 % | £1.94 |
| 2,000 | 30 % | £1.81 |
| 5,000 | 40 % | £1.55 |
| 10,000+ | 50 % | £1.29 |
Are Also Known As
- Steel Pallet Feet
- Metal Pallet Feet
- Stillage Feet
- Pallet Support Feet
- Weld-On Pallet Feet
- Heavy Duty Pallet Feet
- Pallet Base Feet
Technical specs
- Base: 52 × 52mm
- Height: 14mm
- Open top: 36mm
- Shape: Square
- Thickness: 3mm
Product Overview

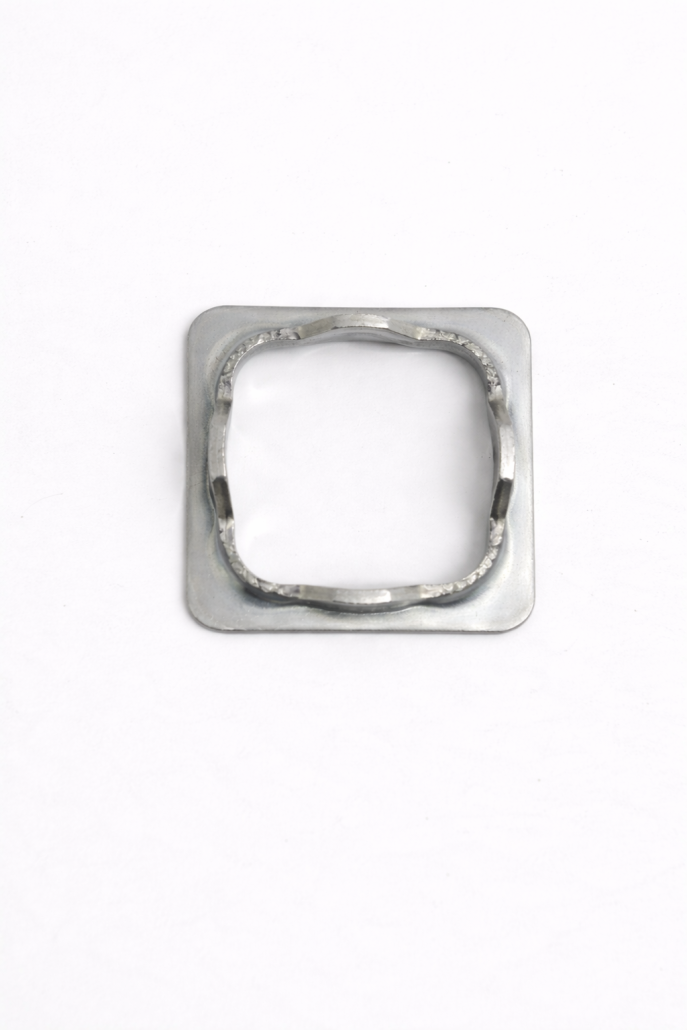

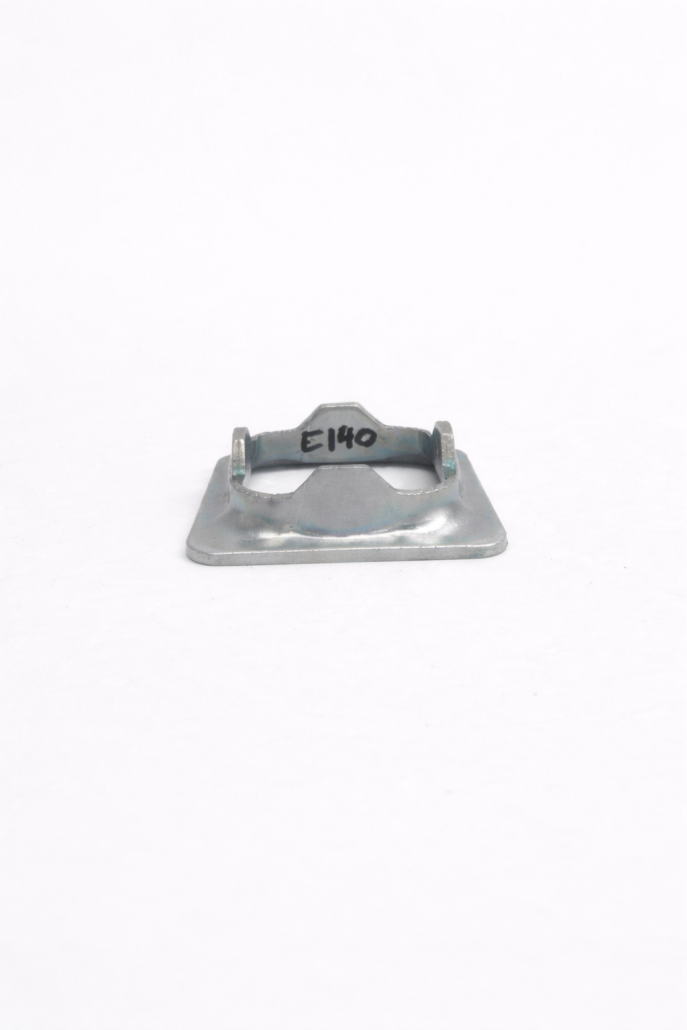

The KPF140 Steel Pallet Foot Retainer Plate is a pressed steel locating component designed to work in conjunction with pallet feet and RHS pallet structures. Featuring a 52 × 52 mm square footprint and a 14 mm low-profile height, the KPF140 helps retain, locate, and stabilise pallet feet or tubular sections during assembly, stacking, and handling.
Manufactured from 2.5 mm thick steel, this component incorporates a formed internal profile that securely captures the mating pallet foot or RHS section, reducing lateral movement and improving alignment. Its shallow pressed design allows it to sit neatly within pallet assemblies without adding unnecessary height, making it ideal for space-restricted pallet constructions.
Commonly used as part of modular pallet and stillage systems, the KPF140 retainer plate is suitable for new builds and refurbishment projects across warehouse, logistics, and industrial environments where consistent fitment and controlled positioning are required. Also, view our complete range of pallet feet for alternative sizes and load capacities.
