The Basics of CNC Engraving Machines for Custom Designs

CNC technology has changed the way industries and workshops create designs, parts, and custom products. One area where CNC (Computer Numerical Control) has become especially useful is engraving. From decorative nameplates to industrial marking, CNC engraving machines make the process faster, more accurate, and repeatable.

In this guide, we’ll explore the basics of CNC engraving machines, how they work, the types available, their advantages, and practical applications. By the end, you’ll understand why they are such a powerful tool for both businesses and hobbyists who want to create custom designs.

What Is CNC Engraving?

Engraving is the process of cutting or carving designs, letters, or patterns onto a surface. Traditionally, this was done by hand with tools like chisels, burins, or gravers. While hand engraving gives a personal touch, it is time-consuming and requires a high level of skill.

CNC engraving, on the other hand, uses a computer-controlled machine to do the same work. Instead of relying on human hands, the computer sends commands to motors and tools to move in exact patterns. This allows highly detailed designs to be made quickly, precisely, and consistently. Learn more about the CNC Machining process and the wide applications of this technology.

How Do CNC Engraving Machines Work?

CNC engraving machines operate by combining software, motors, and cutting tools. Here’s a step-by-step breakdown:

1. Design Creation

The first step is creating a design on a computer using CAD (Computer-Aided Design) software. This can be text, logos, or complex patterns.

2. Toolpath Generation

The design is converted into a toolpath using CAM (Computer-Aided Manufacturing) software. The toolpath tells the machine exactly where the tool should move, how deep it should cut, and at what speed.

3. Machine Setup

The operator installs the correct tool (like an engraving bit, milling cutter, or laser head), secures the material on the worktable, and sets up the machine.

4. Engraving Process

The CNC machine reads the toolpath instructions (in G-code format) and begins engraving. Motors move the tool in the X, Y, and Z directions while the spindle rotates the cutting tool, or the laser beam burns the surface.

5. Finishing

Once the engraving is done, the product may need polishing, cleaning, or painting to enhance the design.

Types of CNC Engraving Machines

Not all CNC engraving machines are the same. They differ in technology, size, and application. Here are the main types:

1. CNC Router Engraving Machines

• Use rotating cutting tools to engrave wood, plastics, soft metals, and composites.

• Suitable for signboards, furniture designs, and decorative panels.

• Affordable and popular for small workshops.

2. CNC Milling Engraving Machines

• More powerful than routers, capable of engraving hard metals like steel, brass, or titanium.

• Often used in jewellery making, mould manufacturing, and industrial parts marking.

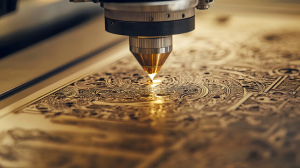

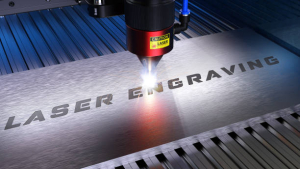

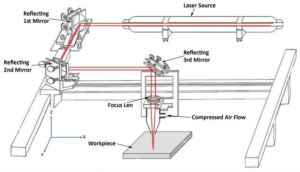

3. Laser Engraving Machines

• Use a high-powered laser beam instead of a cutting tool.

• Can engrave wood, acrylic, leather, glass, and some metals.

• Extremely precise, making them perfect for logos, text, and intricate custom patterns.

4. CNC Dot Peen Engraving Machines

• Use a pin that strikes the material surface to create a series of dots forming letters or codes.

• Commonly used for marking serial numbers, barcodes, or QR codes on metal parts.

5. Hybrid Machines

• Some machines combine engraving with other functions like cutting, drilling, or 3D carving.

• Useful for workshops that handle multiple types of jobs.

Materials Used for CNC Engraving

CNC engraving machines can work on a wide range of materials depending on the type of machine and tool. Common materials include:

• Metals: Aluminium, brass, stainless steel, gold, silver, copper.

• Plastics: Acrylic, PVC, ABS.

• Wood: Plywood, MDF, hardwoods like oak or walnut.

• Glass and Ceramics: Mostly with laser engraving.

• Leather and Fabrics: Personalized designs for fashion and branding.

Benefits of CNC Engraving Machines

CNC engraving offers several benefits compared to traditional methods:

1. High Precision

The computer-controlled movements ensure exact cutting, even for tiny details or complex patterns.

2. Repeatability

The same design can be engraved hundreds of times with no loss in quality, which is ideal for mass production.

3. Time Efficiency

CNC engraving is much faster than manual engraving, saving both time and labour costs.

4. Flexibility

A single machine can engrave on multiple materials, from metals to plastics, depending on the tool or laser used.

5. Customisation

Designs can be easily modified in the software, making it simple to create custom patterns, personalised gifts, or branded products.

6. Reduced Errors

Since machines follow exact programmed instructions, human error is minimised.

At Kirmell, our CNC engraving services are widely used for industrial part marking, decorative branding, and custom solutions for clients across different sectors. From serial numbers on steel components to personalized designs, we deliver precision and consistency

Key Features to Look for in a CNC Engraving Machine

If you are planning to invest in a CNC engraving machine, here are some important features to consider:

• Spindle Speed or Laser Power: Determines how effectively the machine can cut different materials.

• Worktable Size: The area available for placing materials. Larger worktables are useful for big jobs.

• Precision and Resolution: Important for detailed designs, especially in jewelry or fine logos.

• Software Compatibility: The machine should support common CAD/CAM software.

• Durability: A strong build ensures long-term performance.

• Ease of Use: Beginner-friendly machines often come with intuitive software and training support.

Tips for Beginners Using CNC Engraving Machines

1. Start Small: Begin with simple projects like nameplates or small logos before moving to complex designs.

2. Choose the Right Material: Soft materials like wood or acrylic are easier for practice.

3. Use Proper Tools: Select engraving bits or laser power settings suitable for the material.

4. Maintain the Machine: Regular cleaning, lubrication, and calibration extend the machine’s lifespan.

5. Experiment with Software: Learn how to adjust toolpaths, speeds, and depths for better results.

6. Focus on Safety: Always wear protective glasses, gloves, and follow machine safety guidelines.

Kirmell CNC Engraving Services

At Kirmell, we provide high-quality CNC engraving services tailored to both industrial and custom design needs. From marking serial numbers on steel parts to creating personalised engravings on metals and plastics, our team ensures precision, durability, and consistency. With decades of UK engineering expertise, we help businesses and individuals bring their ideas to life with accuracy and a professional finish. Contact us today for more information and quotes for your project.

Conclusion

CNC engraving machines are a modern solution for creating custom designs on a wide range of materials. They provide speed, accuracy, and flexibility, making them ideal for businesses, workshops, and even hobbyists. Whether you are making jewelry, industrial parts, or personalized gifts, CNC engraving allows you to turn digital designs into real products with professional quality.

If you’re just starting out, begin with simple projects, learn the software, and gradually move toward more complex work. With practice and the right machine, CNC engraving opens endless possibilities for creativity and production.
