What is a CNC Drilling Machine? Complete Guide for Fabricators

Fabricators today rely on advanced technology to produce precise, repeatable, and high-quality parts. One of the most important tools in modern manufacturing is the CNC drilling machine. But what is a CNC drilling machine, and why does it matter for fabricators?

In simple terms, these machines are automated systems that use programmed instructions to drill accurate holes into different materials. Unlike manual drilling, CNC (Computer Numerical Control) machines provide exceptional precision, speed, and consistency, making them indispensable in industries ranging from aerospace to automotive.

This guide explores the CNC drilling process, machine types, advantages, and applications so fabricators can better understand how to maximise its benefits.

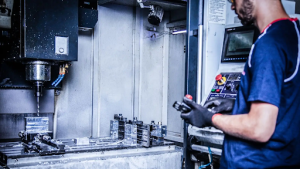

Understanding the CNC Drilling Process

The CNC drilling process is a step-by-step method that involves computer programming and automated cutting tools to produce clean, accurate holes. Here’s how it works:

• Designing the Part: Engineers create a digital model (CAD design) with precise hole placements.
• Programming the Machine: Instructions are translated into G-code or M-code, which tells the drill how and where to cut.
• Tool Selection: The right drill bits and tool holders are chosen depending on the material and hole size.
• Machine Setup: The workpiece is securely clamped onto the machine table.
• Drilling Operation: The machine executes the drilling cycle automatically, maintaining precise speed and feed rates.
• Inspection and Quality Control: Final parts are measured to ensure they meet tolerance requirements.

This process reduces human error, ensures consistent results, and improves overall productivity in fabrication workshops. If you’d like to learn more about the fundamentals, check out our beginner’s guide to CNC machining.

At Kirmell, we offer CNC drilling services for both aluminium and steel, ensuring precision, accuracy, and reliable finishes. If you require high-quality drilling for your next project, contact us today to discuss your requirements.

Types of CNC Drilling Machines

Not all drilling jobs are the same, and that’s why there are multiple types of CNC drilling machines designed to handle different projects. Each type has its own unique structure, drilling capacity, and application in the fabrication industry.

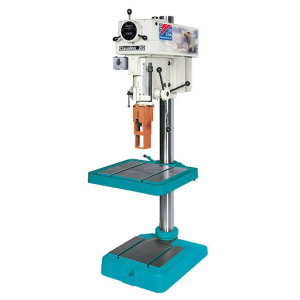

1. Upright CNC Drill Press

The upright drill press is one of the most common CNC drilling machines. It features a vertical spindle that moves up and down to perform standard drilling operations.

• Best for: General-purpose drilling, medium to large workpieces.
• Advantages: Simple setup, versatile, and suitable for straight vertical drilling tasks.
• Typical uses: Fabrication shops producing parts with standard round holes, such as brackets, plates, and frames.

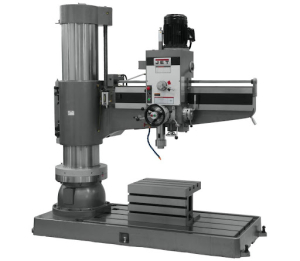

2. Radial Arm CNC Drill Press

This machine is designed with a movable radial arm that allows the drill head to extend and pivot across the workpiece.

• Best for: Large workpieces where holes need to be drilled at different angles or far from the edges.
• Advantages: Flexibility, wide reach, and the ability to drill multiple holes without repositioning the part.
• Typical uses: Heavy machinery, structural steel, and large plates in construction and shipbuilding.

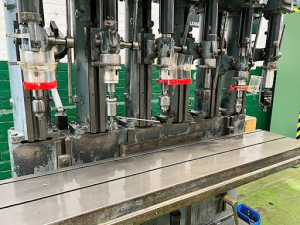

3. Gang Drilling Machine

A gang drilling machine has several drill heads mounted on a single table, allowing multiple operations to be performed in one pass.

• Best for: Medium to high-volume production requiring different hole sizes or operations on the same part.
• Advantages: Time-saving, higher efficiency, and reduced setup between drilling tasks.
• Typical uses: Components that need spot drilling, reaming, and tapping all in one cycle, like automotive or electronic parts.

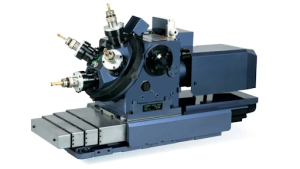

4. Turret-Type Machine

Turret-type machines feature a rotating turret head that can accommodate multiple tools simultaneously. This makes them especially useful for complex drilling operations that require frequent tool changes and intricate detailing. Many of these benefits overlap with CNC milling machines, which also excel at handling multi-axis precision work.

• Best for: Complex drilling operations that require frequent tool changes.
• Advantages: Increased productivity due to automatic tool switching, ideal for machining intricate parts.
• Typical uses: Aerospace components, automotive engine blocks, and parts with multiple hole types.

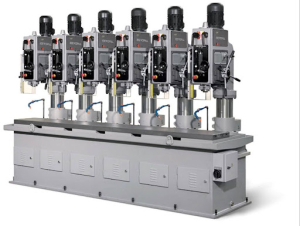

5. Multiple Spindle Drilling Machine

As the name suggests, this machine uses multiple spindles that operate simultaneously to drill identical holes in one cycle.

• Best for: Mass production of parts with repetitive hole patterns.
• Advantages: High speed, consistent output, and reduced cycle times.
• Typical uses: Industrial parts, metal sheets, and automotive components requiring many uniform holes.

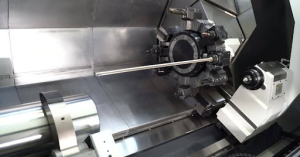

6. Deep Hole CNC Drilling Machine

These machines are specialised for drilling very deep and narrow holes that are difficult to achieve with standard drills.

• Best for: Applications requiring holes with depths greater than 10 times their diameter.
• Advantages: Excellent precision, coolant systems to flush out chips, and longer tool life.
• Typical uses: Oil and gas equipment, aerospace turbine shafts, medical instruments, and mould making.

Common CNC Drilling Operations

CNC machines can perform far more than standard drilling. Each operation serves a specific purpose and enables fabricators to achieve different outcomes. Here are the most important ones:

• Spot Drilling

Spot drilling is used to create a small, shallow indentation at the exact location where a hole will be drilled. This prevents the drill bit from wandering and ensures precise hole placement.

• Drilling

The most basic operation, drilling, creates round holes by cutting straight into the workpiece. CNC automation ensures consistent size and depth across multiple parts.

• Reaming

Reaming enlarges existing holes to achieve high precision and smooth finishes. It is often used when parts require tight tolerances, such as in aerospace or automotive applications.

• Boring

Boring is performed to enlarge or refine an existing hole with extreme accuracy. It is particularly useful for achieving concentricity and dimensional precision.

• Counterboring

Counterboring produces a flat-bottomed recess so that bolt or screw heads can sit flush with the material surface. This is common in mechanical assembly and structural parts.

• Countersinking

Countersinking creates a conical recess at the hole opening. This allows flat-head screws to sit level with or below the surface, giving parts a clean finish.

• Tapping

Tapping is used to cut internal threads inside a drilled hole. CNC machines automate this process, making it faster and more accurate than manual threading.

• Micro-Drilling

Micro-drilling is designed for extremely small-diameter holes, often less than 1 mm. It is widely used in electronics, semiconductors, and medical device manufacturing.

• Gun Drilling

Gun drilling is specialised for ultra-deep holes with high length-to-diameter ratios. A high-pressure coolant system removes chips and prevents overheating, ensuring straight, clean results.

These varied operations make CNC drilling one of the most versatile machining processes for fabricators.

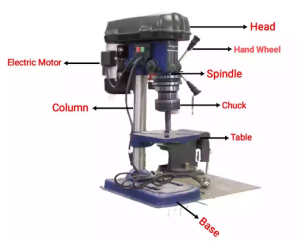

Key Components of a CNC Drilling Machine

A CNC drilling machine is built from several critical components, each contributing to its performance and accuracy.

• Drill Bits

The cutting tools are responsible for creating holes. Drill bits come in different shapes, sizes, and coatings depending on the material being drilled.

• Spindle

The spindle holds and rotates the drill bit at high speeds. It is the core driving force that enables precise cutting and is directly linked to hole quality.

• Control Panel

The interface is where operators program the machine, adjust settings, and monitor operations. It translates digital commands into physical drilling actions.

• Machine Table

The surface that supports and clamps the workpiece during drilling. A rigid table ensures stability, reducing vibration and errors.

• Motors & Axes

CNC drills use servo motors to move along multiple axes (X, Y, Z). This enables precise positioning and multi-directional drilling.

• Coolant System

Coolant or lubricant is circulated to reduce heat, prevent tool wear, and flush chips away from the drilling area.

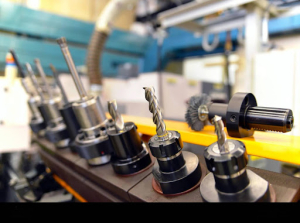

• Tool Changer

An automatic system that swaps drill bits and cutting tools without manual intervention. This improves efficiency for complex or multi-step operations.

Together, these components make drilling machines precise, efficient, and capable of handling even the most demanding fabrication projects.

Advantages of CNC Drilling Machines

When compared to traditional manual drilling, the advantages of CNC drilling machines are remarkable. These benefits explain why so many industries rely on CNC technology:

Precision and Accuracy

CNC machines are programmed with exact measurements, ensuring that every hole is drilled to the correct size, depth, and location. This level of precision is nearly impossible to achieve consistently with manual methods, especially in high-volume production.

Time-Saving

Because CNC drilling operates automatically, cycles are completed much faster than manual drilling. Complex jobs that would take hours by hand can be finished in minutes, making it ideal for meeting tight deadlines.

Reduced Human Error

Manual drilling depends heavily on operator skill, which can lead to mistakes. With CNC machines, errors are minimised because the process follows pre-programmed instructions, ensuring repeatability across hundreds or thousands of parts.

Flexibility Across Materials

CNC drilling machines are not limited to metals alone; they can also handle plastics, composites, and even wood. This versatility makes them a go-to solution for fabricators serving multiple industries.

Scalability

Whether producing a single prototype or a full production batch, CNC drilling machines scale easily. Once the program is created, it can be reused for future runs, ensuring consistent quality across different project sizes.

Complex Capabilities

CNC drilling machines can drill holes at various angles, depths, and diameters with ease. Multi-axis machines make it possible to produce highly intricate parts that would be extremely difficult or time-consuming with manual equipment.

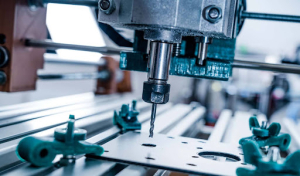

Applications of CNC Drilling in Fabrication

CNC drilling is not limited to one sector; it plays a crucial role across a wide range of industries. Some of the most common applications include:

Automotive Manufacturing

CNC drilling is used to produce essential components such as engine blocks, brake discs, and chassis parts. These parts require consistent accuracy and durability to ensure safety and performance.

Electronics and Semiconductors

In electronics, precision is everything. CNC drilling is used to create tiny, accurate holes in printed circuit boards (PCBs) and other electronic components, allowing for smooth assembly and reliable performance.

Medical Industry

The medical sector depends on CNC drilling for manufacturing surgical tools, implants, and prosthetics. These parts require extremely tight tolerances and smooth finishes to meet safety and hygiene standards.

Construction and Architecture

These machines are widely used in construction for drilling steel beams, structural frames, and fixtures. Their ability to handle large, heavy workpieces makes them indispensable for infrastructure projects.

Furniture Manufacturing

In furniture production, CNC drilling ensures precise holes for assembly fittings, dowels, and fasteners. This improves product quality and consistency while speeding up the assembly process.

Also, check out our other guides on CNC machine services that we offer:

• CNC Machining vs 3D Printing: Which One Should You Choose?
• CNC Machining vs Traditional Machining: Which is Right for Your Project?

Kirmell CNC Drilling Services

At Kirmell, we specialise in providing precision machining solutions tailored to modern fabrication needs. Our CNC drilling services are designed to meet the demands of industries where accuracy, efficiency, and consistency are non-negotiable.

With advanced drilling machines, skilled operators, and a focus on quality, Kirmell supports projects ranging from small-batch prototypes to large-scale production runs. Whether you require deep-hole drilling, countersinking, or complex multi-axis drilling, our services ensure optimal results with minimal lead times.

For fabricators seeking reliable partners in CNC metal drilling services, Kirmell offers the perfect balance of technology and expertise.

Conclusion

CNC drilling machines have transformed the way fabricators create accurate and repeatable holes across multiple industries. From understanding what is a CNC drilling machine is to exploring the CNC drilling process, different machine types, and the advantages of CNC drilling machines, this guide has shown why CNC technology is essential in modern manufacturing.

By leveraging advanced tools and professional CNC metal drilling services, fabricators can achieve precision, efficiency, and scalability in every project. As technology continues to advance, CNC drilling will remain at the heart of fabrication and production.
