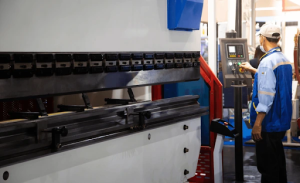

What is a CNC Press Brake? A Beginner’s Guide to Modern Metal Bending

A CNC press brake machine is the backbone of modern metal fabrication. It shapes sheet metal into precise angles and designs using computer programming and automated force. From car parts to aircraft components, this machine powers industries that depend on accuracy, speed, and flexibility. Whether you call it a CNC brake press, CNC hydraulic press brake, CNC brake press machine, or press brake CNC, the goal remains the same: bend metal with precision while saving time and labour.

Here is everything you need to know about this technology, how it works, and its importance in manufacturing.

The Basics of CNC Press Brake Bending

A press brake CNC machine is designed to bend sheet metal by pressing a punch (top tool) against a die (bottom tool). The sheet metal sits between the punch and die, and the machine applies controlled force to create bends.

What makes a CNC brake press different is the use of digital programming. Operators enter instructions into the CNC system, which controls the machine’s axes, pressure, and sequence of movements. This eliminates human error and ensures every bend is consistent, no matter how complex the design.

At Kirmell, we provide expert CNC press brake services, helping businesses achieve precise, efficient, and repeatable metal bending for projects of all sizes. Contact us today and get a quote for your project.

Is a Press Brake a CNC Machine?

Not all press brakes are CNC machines. Traditional versions can be mechanical or hydraulic without computer controls. A CNC brake press machine, however, includes a computer system that manages positioning, angles, and pressure with extreme precision. So while every CNC press brake is a press brake, not every press brake is CNC-enabled.

Types of CNC Press Brakes

Different industries and jobs require different kinds of machines. Choosing the right press brake CNC machine depends on the material, thickness, bending complexity, and production volume. Here are the main types explained in detail:

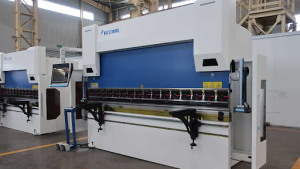

Hydraulic CNC Press Brake

The hydraulic CNC press brake is the most widely used machine in modern fabrication. It uses hydraulic cylinders filled with fluid to apply force on the punch and die. This design provides consistent pressure across the entire bending length, making it perfect for heavy-duty applications such as structural steel, shipbuilding, and automotive components.

• Advantages: High tonnage capacity, reliability, and durability.
• Use Cases: Large metal sheets, thicker materials, and long production runs.
• Why Choose It: A CNC hydraulic press brake machine allows for stable performance and is capable of handling a wide range of metals with ease.

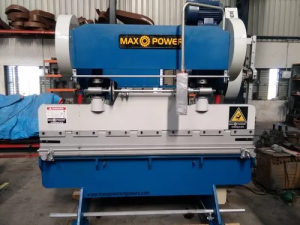

Mechanical Press Brake

The mechanical press brake is one of the earliest types of press brakes. It operates using a flywheel, clutch, and crank system that generates force to perform bends. While less common in modern workshops, it is still valued in certain environments for its simplicity and lower cost.

• Advantages: Simple construction, lower upfront cost, faster cycles for repetitive bends.
• Use Cases: Thin sheet metals, simple bends, and small-scale operations where CNC precision is not a top priority.
• Why Choose It: For smaller shops or jobs that don’t require advanced automation, a mechanical press brake can still be a practical option.

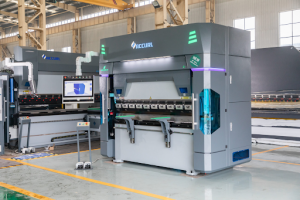

Servo-Electric Press Brake

A servo-electric press brake is powered by servo motors instead of hydraulics. This makes it extremely energy efficient and precise. Because there’s no hydraulic fluid involved, maintenance is simpler, and accuracy can reach micrometre levels.

• Advantages: High accuracy, low energy consumption, clean operation (no hydraulic oil).
• Use Cases: Electronics, aerospace, and industries where precision and environmental standards are critical.
• Why Choose It: Ideal for high-precision jobs, smaller sheet thicknesses, and companies that want greener technology.

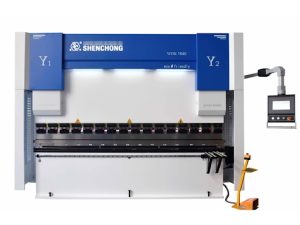

Hybrid CNC Brake Press Machine

The hybrid CNC brake press machine combines the best of hydraulic and electric systems. It uses hydraulics for power and servo motors for precision control. This combination delivers the strength of hydraulics while reducing energy waste and offering faster, smoother operation.

• Advantages: Balanced performance, reduced energy usage, quieter operation.
• Use Cases: Medium to heavy production, where both power and efficiency are important.
• Why Choose It: A great solution for manufacturers who need the reliability of hydraulics but also want the sustainability and accuracy of electric drives.

Each type of press brake CNC machine has its own strengths. A hydraulic CNC press brake is perfect for heavy-duty work, while a servo-electric model excels in precision tasks. Mechanical press brakes still serve smaller shops, and hybrid machines bridge the gap for versatile production needs.

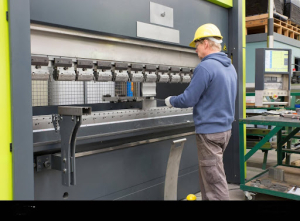

How a CNC Press Brake Machine Works

To understand cnc press brake machine working, imagine the following steps:

1. Programming: The operator inputs instructions into the CNC system, defining bend angles, dimensions, and sequence.
2. Material Positioning: Sheet metal is placed on the machine bed.
3. Back Gauge Setup: The CNC back gauge ensures the sheet is aligned correctly. Once the sheet is positioned, it may also need operations such as CNC drilling to prepare holes before the bending stage.
4. Punch and Die Action: The punch lowers with controlled force into the die, bending the sheet metal.
5. Automatic Adjustments: The CNC system monitors and adjusts pressure and alignment for accuracy.

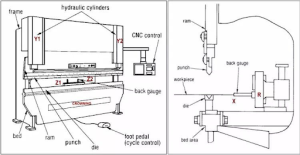

Key Components of CNC Press Brake Technology

The efficiency of a CNC hydraulic press brake bending machine depends heavily on its main components. Each part plays a vital role in shaping sheet metal accurately.

• Bed

The bed is the foundation of the press brake. It’s a rigid, heavy platform where the die is mounted and the sheet metal rests. A stable bed prevents vibrations or misalignment during bending, which is essential when working with thicker or longer sheets.

• Ram

The ram is the moving beam that drives the punch downward into the die. In a CNC brake press machine, the ram movement is carefully controlled by hydraulic cylinders or servo motors. High-end machines allow multiple-axis control (Y1, Y2, etc.), enabling the ram to move independently on each side for complex or tapered bends.

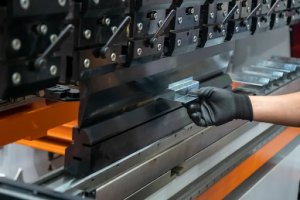

• Punch and Die

These are the primary press brake tools that give shape to the metal.

• Punches: Attached to the ram, punches come in various profiles such as straight, gooseneck, or radius punches.
• Dies: Fixed on the bed, dies are usually V-shaped, U-shaped, or custom-designed. The punch presses the sheet into the die cavity, creating the bend. The choice of punch and die depends on the bend angle, material type, and sheet thickness.

• Back Gauge

This component positions the sheet accurately for repeatable bends. In CNC machines, the back gauge can move in multiple directions (X, R, Z1, Z2 axes), allowing highly precise setups for complex parts. For example, a back gauge might reposition the sheet automatically for three bends at different angles without operator interference.

• Control System

Often called the “brain” of the press brake, the CNC control system manages every step of the operation. Operators can program bends using a touchscreen or software, simulate the bending process, and monitor performance in real time. Some advanced systems (like ESA or Delem) even integrate with CAD/CAM software, allowing designs to move directly from computer to machine.

Kirmell’s CNC press brake services use advanced tooling, precision back gauges, and modern control systems to guarantee consistent accuracy across every bend.

CNC Press Brake Forming Process

The CNC press brake forming process involves shaping flat sheet metal into parts like brackets, enclosures, and panels. It is widely used in industries that require CNC sheet metal press brake operations.

Modern technology allows multi-step bends, radius forming, and even complex 3D shapes. Since programming can store hundreds of designs, manufacturers can switch between jobs quickly and maintain high production speed.

Factors Influencing Press Brake Bending

The quality of a bend produced by a CNC press brake machine depends on more than just programming. Several important factors influence how the sheet metal will behave during the bending process. Understanding these helps operators achieve consistent results and avoid defects.

• Material Type and Thickness

Different metals bend differently. Softer materials like aluminium require less force, while harder ones like stainless steel need more tonnage. Thicker sheets demand higher power from the CNC hydraulic press brake machine, and may also cause more springback (when the metal tries to return to its original shape after bending).

• Bend Radius and Angle

The chosen bend radius affects how the material flows. A tight radius might cause cracking in harder metals, while a larger radius makes bending easier but less sharp. Accurate angle control is a key advantage of CNC press brake bending machines, as the CNC system automatically adjusts force to achieve the desired angle.

• Punch and Die Selection

The shape of the punch and die directly determines the quality of the bend. For example, a V-die is most common for general bending, while special radius or offset dies are used for complex parts. Matching the right tools with the material ensures clean, precise bends.

• Back Gauge Accuracy

The back gauge ensures the sheet metal is positioned correctly for each bend. Even small misalignments can cause uneven angles. Modern press brake CNC machines use multi-axis back gauges to reposition automatically, which reduces human error and boosts efficiency.

• Springback Effect

Springback is the natural tendency of metal to slightly return toward its original shape after bending. CNC systems can compensate by over-bending the material just enough to achieve the exact required angle. This is especially important when working with high-strength steels.

• Machine Tonnage and Capacity

Every CNC brake press machine has a maximum tonnage capacity. If the sheet is too thick or the bend too sharp, exceeding that limit can damage the machine or tools. Choosing the correct press brake size and power ensures safe and efficient bending.

• Operator Programming and Setup

Even with advanced automation, the human factor matters. Accurate programming of bend sequences, angles, and tool setup ensures smooth production. Mistakes in programming can lead to wasted material or inconsistent results.

Advantages of CNC Press Brake Machines

The advantages of CNC press brake technology are numerous, making it the preferred choice for modern fabrication:

• Precision and Repeatability: Every bend is identical, even in large production runs.
• Speed and Efficiency: Automated programming reduces manual labour and production time.
• Flexibility in Design: Handles a wide variety of metals, thicknesses, and complex shapes.
• Safety and Material Optimisation: Built-in sensors and guards protect operators, while software ensures minimal waste.
• Cost Effectiveness: While the initial investment is high, reduced labour and increased output save money long-term.

For dependable, professional results, Kirmell’s CNC press brake services deliver precision, efficiency, and safety across every batch.

Safety and Efficiency in CNC Hydraulic Press Brake Operation

Operating a CNC hydraulic press brake bending machine safely is essential. Manufacturers now integrate features such as:

• Laser safety guards that stop the machine if hands enter the work area.
• Automatic overload protection to prevent damage.
• Operator training systems are built into CNC software.

Efficiency is also enhanced through energy-saving hydraulic systems, automatic tool changers, and quick setup features.

Industry Trends: CNC Press Brake Technology and Smart Manufacturing

Like other advanced equipment, such as CNC lathes, press brakes are increasingly connected to smart manufacturing systems for better efficiency. Modern CNC press brake technology is evolving alongside Industry 4.0. Some current trends include:

• Advanced Controls (ESA & Delem): Allow more complex programming and 3D bending simulations.
• Smart CNC Press Brake Tools: Precision tools designed for minimal setup and faster production.
• Automation and Robotics: Robotic arms can load and unload materials, reducing downtime.
• Integration with IoT: Machines connected to digital networks for predictive maintenance and monitoring.

These advancements ensure that a cnc hydraulic press brake machine remains a future-ready investment.

Hire CNC Press Brake Services by Kirmell

At Kirmell Ltd., we provide professional CNC press brake services tailored to the needs of businesses across the UK. With over 40 years of experience in precision engineering and metal fabrication, our team specialises in accurate, efficient, and cost-effective sheet metal bending.

Whether you require CNC hydraulic press brake machine operations for heavy-duty industrial projects or high-precision forming for custom parts, we combine the latest CNC technology with skilled craftsmanship. Our facility is equipped to handle a wide range of metals, thicknesses, and batch sizes, ensuring quality and repeatability every time.

Get in touch with us today to discuss your project or request a quote. Our team is ready to provide reliable CNC press brake services that meet your specifications and deadlines.

Conclusion

CNC press brakes bring clear benefits to modern manufacturing: precision, speed, repeatability, and the ability to handle complex designs with ease. They make metal fabrication more efficient while ensuring consistent quality.

For businesses that need professional support, Kirmell offers CNC press brake services backed by advanced machines and decades of expertise, ensuring every project is completed to the highest standard.
