How to Choose the Right Metal Press Tooling for Your Metal Parts

In metal fabrication, precision and efficiency are key. One of the most important elements to achieving both is using the right press brake tooling. Whether you’re creating simple bends or complex shapes, your metal press tooling determines the quality of the final product. In this guide, we’ll walk you through everything you need to know to choose the right press brake tooling, from types and materials to machine compatibility and bend requirements.

What is Press Brake Tooling?

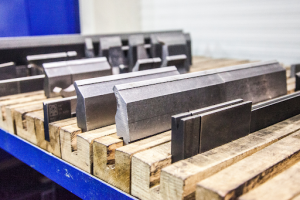

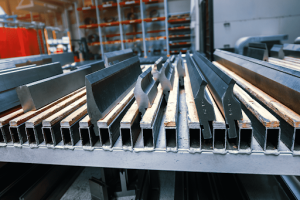

Press brake tooling consists of two main components: the punch (top tool) and the die (bottom tool). These tools work together to bend sheet metal into specific angles and shapes. Depending on the job, tooling can vary in size, shape, hardness, and angle. Choosing the right combination ensures that your metal parts are bent cleanly, accurately, and without damage.

Why the Right Tooling Matters

Choosing the wrong tooling can lead to several problems, including:

• Inaccurate bends
• Cracks or warping in the material
• Damage to your press brake machine
• Wasted materials and increased production time

By using the correct tooling, you not only improve product quality but also extend tool life and reduce overall production costs.

Factors to Consider When Choosing Press Brake Tooling

• Material Type and Thickness

The type and thickness of the material play a major role in tooling selection. For example:

• Soft metals (such as aluminium) require gentler tooling to avoid marks or cracks.
• Thicker sheets need larger V-dies and stronger punches to handle the bending force.

A general rule of thumb: the V-die opening should be 8 times the thickness of the material. However, this can vary depending on the material’s ductility and the desired bend. For materials like aluminium and stainless steel, proper tool selection is just as critical as choosing between MIG vs. TIG welding methods. Read our guide to find more information on this.

• Bend Radius and Angle

The internal bend radius of your finished part must match the tooling’s radius. Too tight a radius could cause the material to crack, while too large a radius may not meet the design specs.

Most tooling is designed to create a 90-degree bend, but if you need acute or obtuse angles, you’ll require specialized punches and dies. Be sure to match the tooling angle to your bend angle.

• Type of Press Brake Machine

Tooling must be compatible with your press brake system. The three most common types of press brake tooling systems are:

• American Style: Simple and cost-effective, but less precise.
• European Style: Features quick clamping, more precision, and better performance.
• Trumpf/Wila Style: High-end tooling system, often used in automated or high-precision environments.

Make sure your tooling is the correct length, thickness, and clamping type for your machine.

• Bending Method

There are three primary bending methods, and each requires specific tooling:

• Air Bending: The most common method. The punch doesn’t bottom out into the die, allowing for flexibility with fewer tools.
• Bottom Bending: Requires more precision and force, but provides very accurate angles.
• Coining: Uses high tonnage to “stamp” the metal between punch and die, ensuring very tight tolerances.

Knowing your bending method helps you decide the required tool strength and shape. Read in detail about metal bending here.

• Production Volume

For high-volume production, investing in precision-ground tools with better wear resistance makes sense. For low-volume or prototype work, modular tooling or segmented tools might offer more flexibility.

Types of Press Brake Tooling

Choosing the right type of press brake tooling depends on the shape, complexity, and accuracy required for your metal parts. There are several types of tooling available, each designed for specific bending tasks. Understanding their features and functions helps you select the right tools for efficient and precise metal fabrication.

Here are the most common types of press brake tooling:

• Standard Punch and Die (90° Tooling)

This is the most widely used and versatile tooling for creating standard 90-degree bends. It’s ideal for general sheet metal work involving mild steel or aluminium. Standard punches come in different nose radii, allowing users to choose the best option based on the material type and thickness.

• Use case: Universal bends, simple parts, low to medium volume production.
• Advantages: Cost-effective, easily replaceable, and compatible with most machines.

• Gooseneck Punches

Gooseneck punches are designed with a distinctive curved neck, allowing clearance for return flanges or deep box sections. They’re commonly used when a bend must be made near an existing flange without hitting the punch body.

• Use case: U-channels, cabinetry components, complex multi-bend parts.
• Advantages: Provides clearance for flanges, suitable for nested bends.

• Acute Angle Tooling

This tooling is used when a bend of less than 90 degrees is required, often referred to as an “acute bend.” These punches and dies are angled (typically 30°, 45°, or 60°) and are useful for sharp folds and tight corner radii.

• Use case: Decorative panels, brackets, or parts with sharp bends.
• Advantages: Precise, sharp angles, flexibility for further flattening or forming.

• Offset Tooling (Z-Bend Tooling)

Offset tooling creates a Z-shaped bend (two opposite bends in close proximity) in a single press. It features a unique punch and die combination that bends the sheet metal in two directions without the need for multiple passes.

• Use case: HVAC brackets, clips, and electrical components.
• Advantages: Saves time by reducing bending steps, maintains alignment.

• Radius Tooling

This type of tooling is used to create large radius bends instead of sharp angles. The punch has a rounded nose that forms the sheet around the die, resulting in a smooth, consistent curve.

• Use case: Automotive panels, aerospace components, and architectural applications.
• Advantages: Reduces stress on the material, ideal for sensitive metals or aesthetic parts.

• Hemming Tooling

Hemming tooling is used in a two-step process to first create a bend (known as the acute angle bend) and then flatten it completely to form a hem or folded edge. This is often used to eliminate sharp edges or add strength to the part.

• Use case: Enclosures, panels, or parts that need safe edges or reinforcement.
• Advantages: Clean, tight hems for safety and structural integrity.

• V-Dies

V-dies are the most common dies used in air bending and bottom bending operations. They come in various V-opening sizes, typically ranging from 6mm to 100mm or more. The size of the opening must match the material thickness and bend radius.

• Use case: General sheet metal bending across many industries.
• Advantages: Widely available, adaptable to different applications.

Press Brake Tooling Materials

Tooling is typically made from hardened tool steel, but not all steel is the same. Common options include:

• Tool Steel (A2/D2): Hard and durable. Great for long production runs.
• Chrome-Moly Steel: Tough and flexible. Suitable for heavy-duty applications.
• Carbide-Coated Tools: Provide extended wear life and reduce scratching, ideal for stainless steel and aluminium.

This precision in material selection mirrors the exactness required in laser cutting operations. In both processes, using the right tools for your material ensures clean results with minimal waste. Discover how laser cutting achieves remarkable precision in metal fabrication.

The Importance of Tonnage Calculations

Bending sheet metal requires force. The thicker and harder the metal, the more tonnage you’ll need. Each punch and die has a tonnage rating; exceeding this could cause permanent damage.

Before choosing tooling, calculate the required tonnage per foot and ensure it is within the safe operating range of both your machine and the tooling.

Common Mistakes to Avoid

• Using worn-out tooling: Reduces accuracy and increases scrap.
• Wrong V-die opening: Leads to cracking or misshapen bends.
• Incorrect tooling alignment: Causes uneven bends.
• Not considering springback: Especially with stainless steel and aluminium, always account for material springback after bending.

Kirmell’s Expertise in Press Brake Tooling

At Kirmell, we understand that every metal project has unique needs. That’s why we offer:

• Expert tooling selection support
• Precision-ground press brake tools
• Compatibility with multiple press brake systems
  Quick delivery and after-sales service

Whether you’re bending simple panels or complex shapes, Kirmell provides the right tools for the job.

We also guide our clients in optimizing their press brake operations by offering tailored solutions that boost productivity and reduce material waste. Contact us today to get started on your project.

Conclusion

Choosing the right press brake tooling isn’t just about picking a punch and die. It involves careful consideration of the material, bend specifications, machine compatibility, production goals, and even safety. By understanding your options and following best practices, you’ll achieve higher quality results, reduce waste, and maximise your equipment’s lifespan.

As press brake technology evolves, companies like Kirmell continue to lead the way by offering smart, efficient, and reliable tooling solutions. From consultation to delivery, we’re here to support your fabrication success.
