KPH11 – Steel Corner Joint (64 × 100 × 25 mm)
-
Manufactured in the UK -
6mm Pressed Steel
-
Bulk Discounts Available
-
Fast Nationwide Delivery
Dispatch:
1-2 Days
›
Weight per unit
• 0.17 kg
Minimum Order:
50 units
Total:
Each:
Each:
Weight per unit
• 0.17 kg
Minimum Order:
50 units
Total:
Each:
Each:
| Quantity | Discount (%) | Price |
|---|---|---|
| 50 | — | £1.58 |
| 100 | 10 % | £1.42 |
| 500+ | 20 % | £1.26 |
Are Also Known As
- Metal Corner Joints
- Steel Frame Corner Joints
- Weld Corner Joints
- Pallet Corner
- Gate Corner Joint
- Steel Frame Connector
- Corner Reinforcement

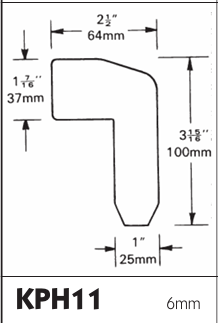

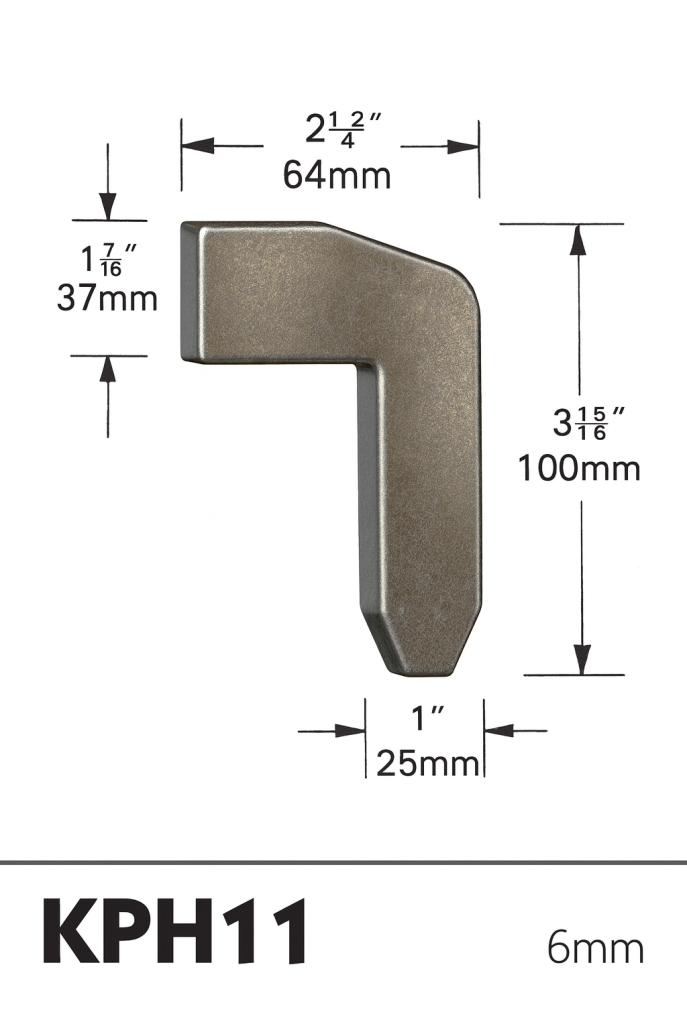

Technical specs
- Length: 64mm
- Height: 100mm
- Leg Width: 25mm
- Thickness: 6mm

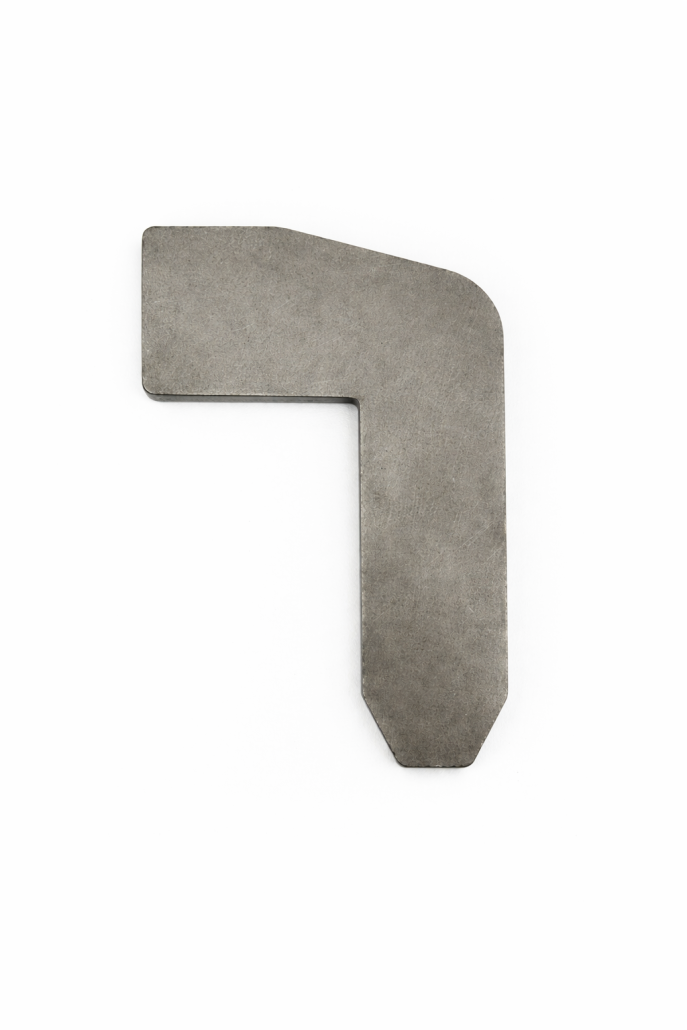

Product Overview
The KPH11 Steel Corner Joint is a reinforced, heavy-section structural connector designed for high-load applications where additional rigidity is required beyond standard 5 mm joints. Manufactured from solid 6 mm thick steel, it provides increased strength, resistance to deformation, and reliable performance in demanding pallet, crate, and industrial frame assemblies.
With a 64 mm top length, 100 mm vertical drop, and 25 mm internal depth, along with a 37 mm internal clearance, the KPH11 offers a tall, stable profile suitable for thicker boards, layered materials, or heavier frame sections. Its precision-formed design allows accurate alignment and secure fixing by welding or mechanical methods, making it well suited to heavy pallet frame construction, high-tension strapping environments, export and freight packaging, warehouse handling systems, and industrial fabrication projects where maximum corner strength is required.
Order today in bulk. Also, check out our full range of pallet hooks here.
