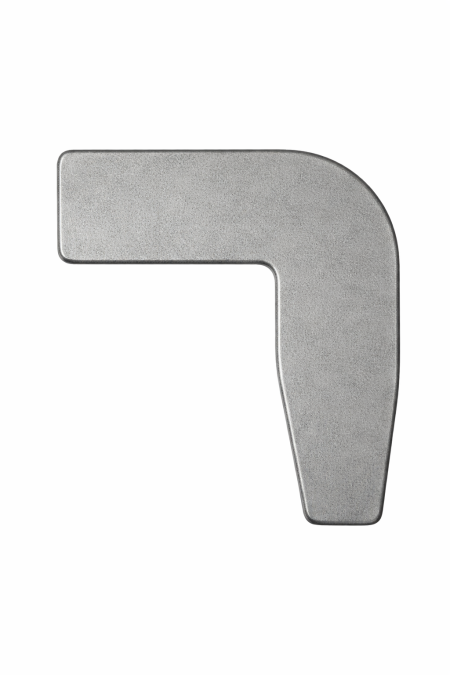

KPH10 – Steel Corner Joint (71 × 83 × 25 mm)
-
Manufactured in the UK -
5mm Pressed Steel
-
Bulk Discounts Available
-
Fast Nationwide Delivery
Dispatch:
1-2 Days
›
Weight per unit
• 0.11 kg
Minimum Order:
50 units
Total:
Each:
Each:
Weight per unit
• 0.11 kg
Minimum Order:
50 units
Total:
Each:
Each:
| Quantity | Discount (%) | Price |
|---|---|---|
| 50 | — | £1.58 |
| 100 | 10 % | £1.42 |
| 500+ | 20 % | £1.26 |
Are Also Known As
- Metal Corner Joints
- Steel Frame Corner Joints
- Weld Corner Joints
- Pallet Corner
- Gate Corner Joint
- Steel Frame Connector
- Corner Reinforcement

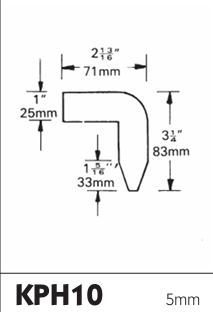

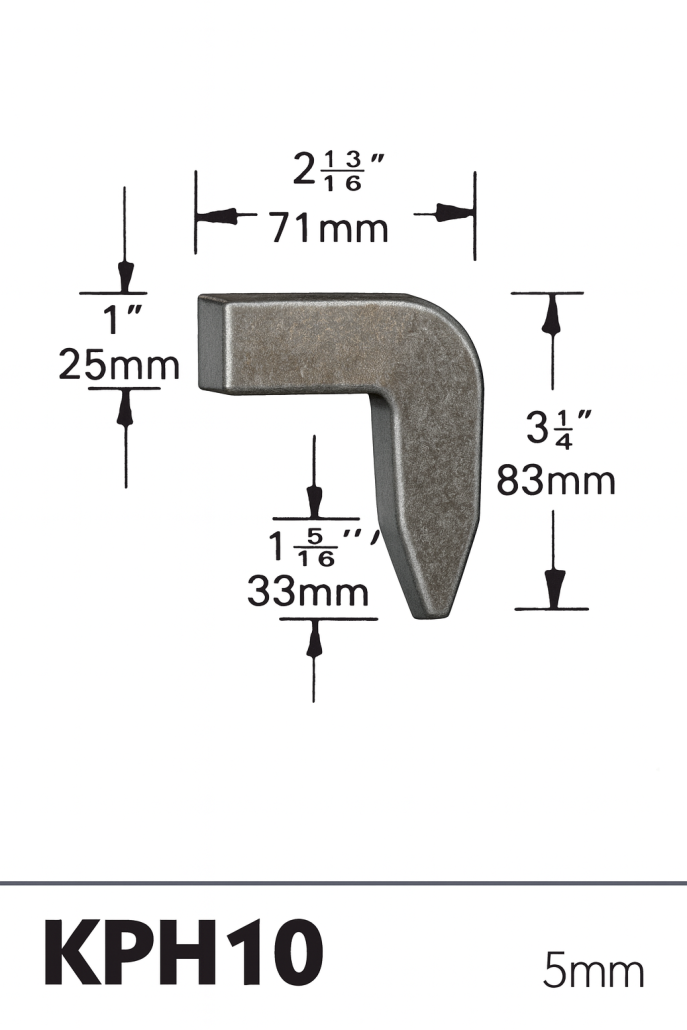

Technical specs
- Length: 71mm
- Height: 83mm
- Leg Width: 25mm
- Inner Step: 33mm
- Thickness: 5mm
Product Overview
The KPH10 Steel Corner Joint is a stepped-profile, heavy-duty structural connector designed for reinforcing and accurately locating 90° corners in pallet frames, crates, stillages, and industrial structures where improved positional stability is required. Manufactured from solid 5 mm thick steel, it provides reliable strength, durability, and resistance to movement in demanding handling and packaging environments.
Featuring a 33 mm internal step, the KPH10 allows the joint to locate positively against frame or panel edges, improving consistency of fit and reducing the risk of movement under load. With a 71 mm top length, 83 mm vertical drop, and 25 mm internal depth, it offers a balanced combination of top engagement and vertical reinforcement, making it suitable for pallet and stillage frame construction, export and industrial packaging, warehouse handling structures, and fabrication projects where controlled alignment and secure corner reinforcement are required. Order today in bulk. Also checkout our full range of pallet hooks here.
