KPH8 – Steel Corner Joint (89 × 83 × 25 mm)
-
Manufactured in the UK -
5mm Pressed Steel
-
Bulk Discounts Available
-
Fast Nationwide Delivery
Dispatch:
1-2 Days
›
Weight per unit
• 0.13 kg
Minimum Order:
50 units
Total:
Each:
Each:
Weight per unit
• 0.13 kg
Minimum Order:
50 units
Total:
Each:
Each:
| Quantity | Discount (%) | Price |
|---|---|---|
| 50 | — | £1.58 |
| 100 | 10 % | £1.42 |
| 500+ | 20 % | £1.26 |
Are Also Known As
- Metal Corner Joints
- Steel Frame Corner Joints
- Weld Corner Joints
- Pallet Corner
- Gate Corner Joint
- Steel Frame Connector
- Corner Reinforcement

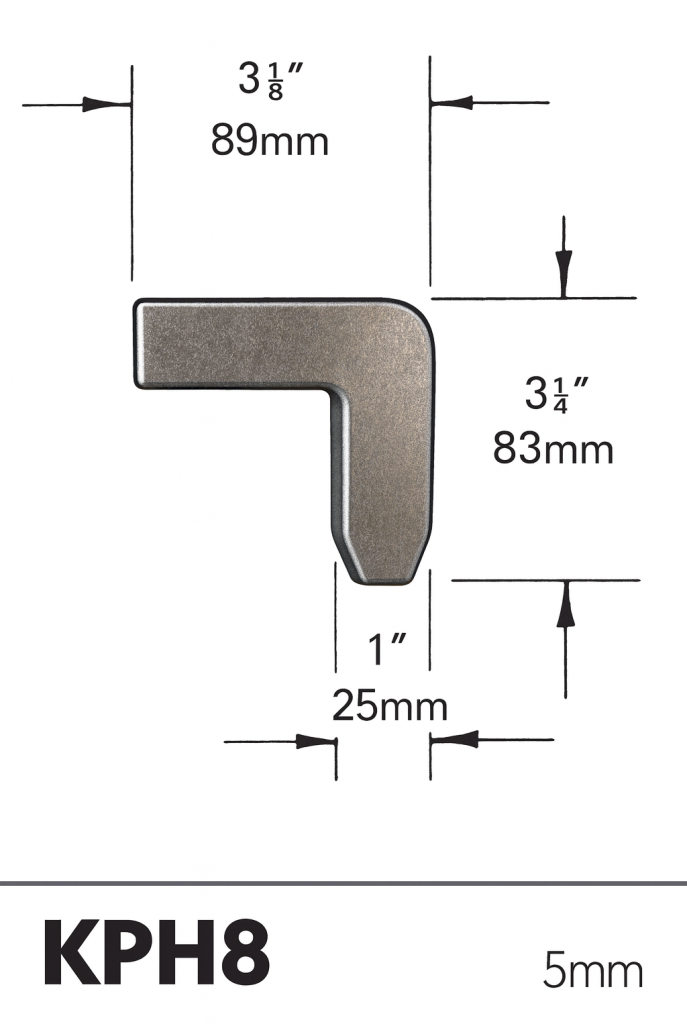

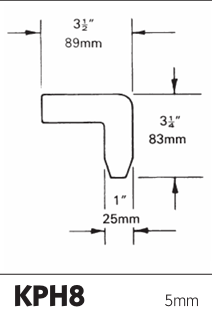

Technical specs
- Length: 89mm
- Height: 83mm
- Leg Width: 25mm
- Thickness: 5mm
Product Overview

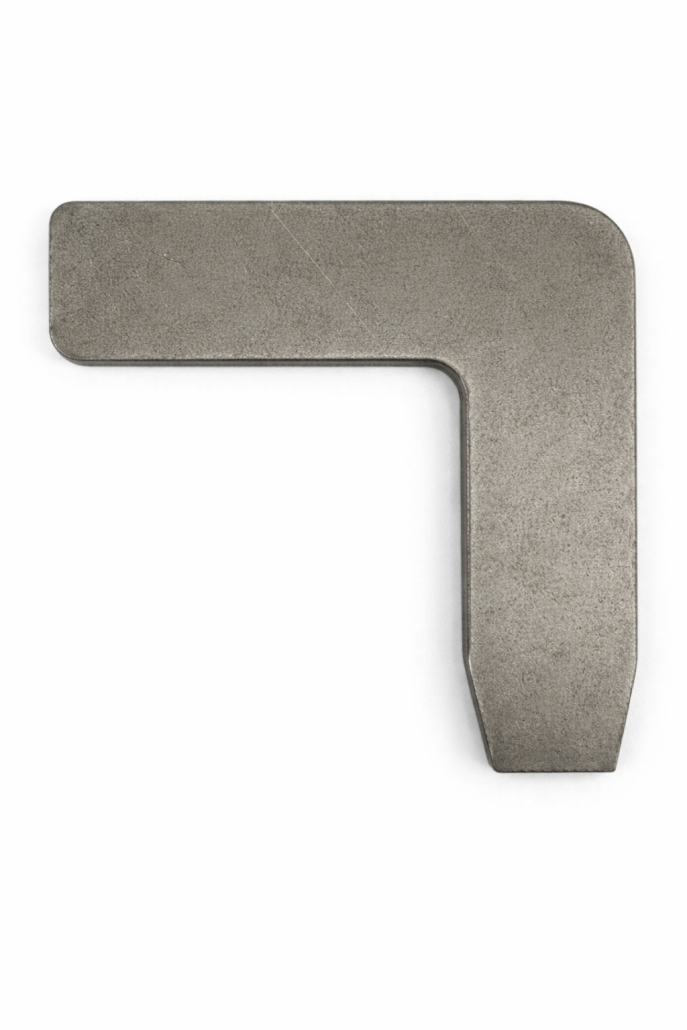

The KPH8 Steel Corner Joint is a heavy-duty structural connector designed to reinforce and join 90° corners in pallet frames, stillages, and industrial structures where a balance of wide top engagement and deep vertical reinforcement is required. Manufactured from solid 5 mm thick steel, the KPH8 provides excellent strength, impact resistance, and long-term durability in demanding handling and storage environments.
With an 89 mm top length (3⅛″), an 83 mm vertical drop (3¼″), and a 25 mm internal depth (1″), the KPH8 offers substantial corner coverage while maintaining a relatively compact footprint compared to deeper-profile joints. This geometry improves load transfer and frame rigidity while helping maintain accurate corner alignment during fabrication.
The precision-cut and formed profile ensures a consistent fit and makes the KPH8 suitable for welding or mechanical fixing. It is commonly used in medium- to heavy-duty pallet frame construction, stillages, industrial storage frames, export packaging structures, and general structural fabrication projects where wide top coverage combined with deep corner reinforcement is required.
Order today in bulk. Also checkout our full range of pallet hooks here.
