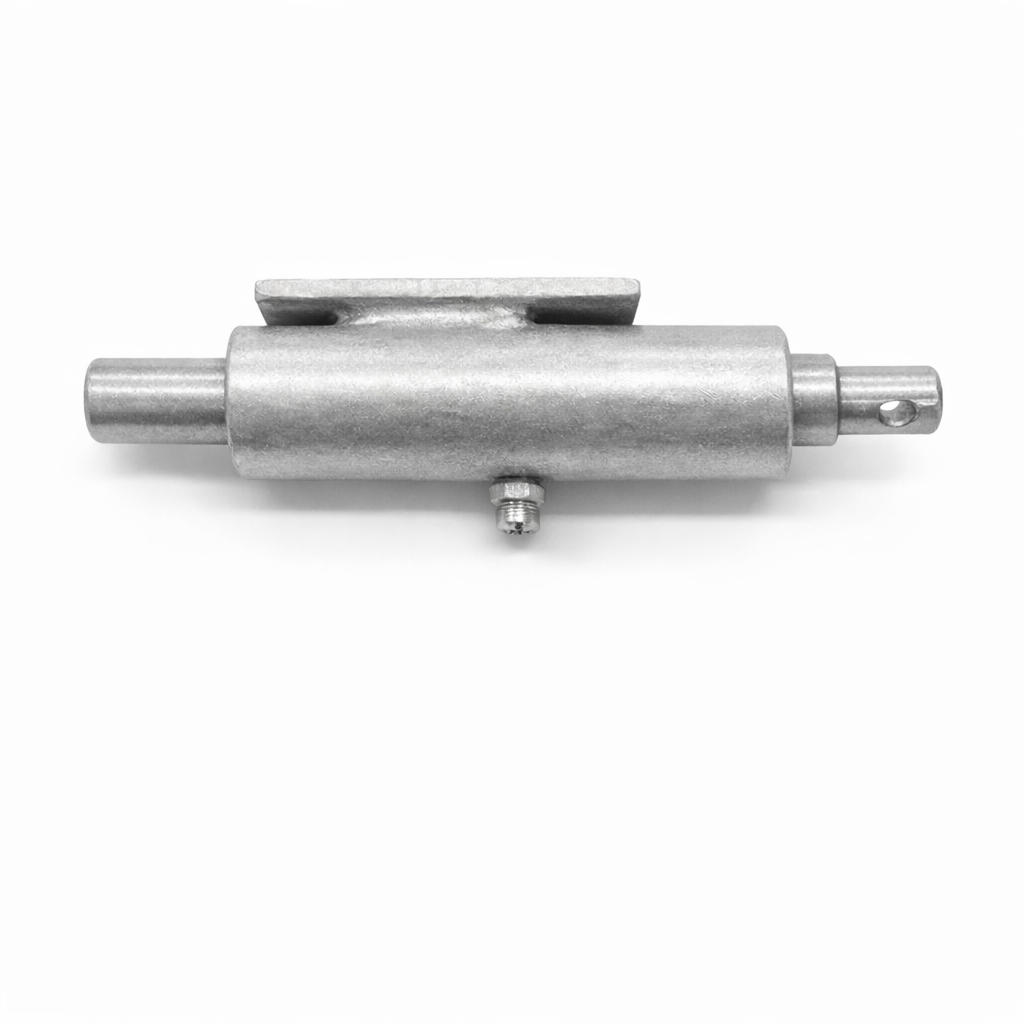

Spring Shoot Bolt ‘P’ Type – Zinc Plated Cable-Operated Spring-Loaded Shoot Bolt
-
Manufactured in the UK -
Zinc Plated Steel
-
Bulk Discounts Available
-
Fast Nationwide Delivery
Dispatch:
1-2 Days
›
Weight per unit
• 0.49 kg
Minimum Order:
12 units
Total:
Each:
Each:
Weight per unit
• 0.49 kg
Minimum Order:
12 units
Total:
Each:
Each:
| Quantity | Discount (%) | Price |
|---|---|---|
| 12 | — | £6.50 |
| 50 | 10 % | £5.85 |
| 100 | 20 % | £5.20 |
| 500+ | 25 % | £4.88 |
Are Also Known As
- Spring Loaded Cable Shoot Bolt
- Type P Cable-Operated Plunger Shoot Bolt
- Steel Cable-Operated Shoot Bolt
- Zinc Plated Cable Shoot Bolt
- Spring Loaded Bolt Latch
- Plunger Shoot Bolt Type P
- Industrial Cable-Operated Latch Bolt

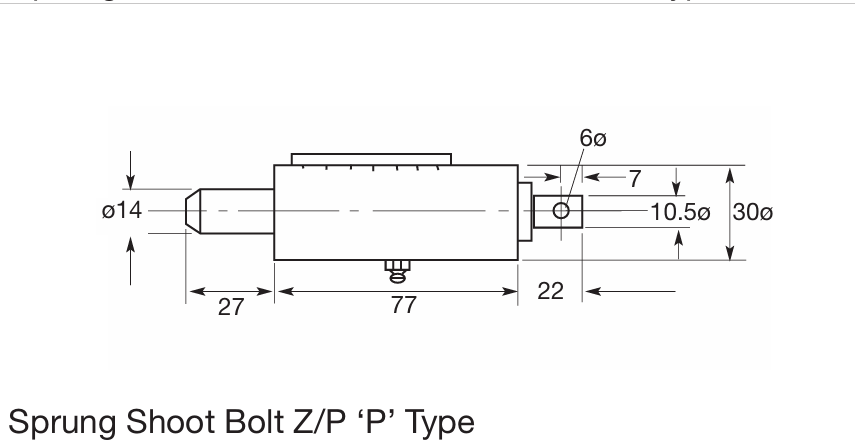

Technical specs
- Body length: 77mm
- Nose length: 27mm
- Tail section: 22mm
- Bolt diameter: 14mm
- Hole sizes: Variable
Product Overview
Buy the Spring Shoot Bolt P Type direct from Kirmell — a zinc plated steel cable-operated spring-loaded shoot bolt for trailers, vehicle tail gates, remote-release gates, and fabricated equipment where the bolt needs to be operated from a distance or from a position where direct hand access to the bolt is not possible.
Why Choose the P Type? The P type is the only shoot bolt in the Kirmell range designed for cable operation. Rather than being retracted by hand directly at the bolt, a cable attachment allows the bolt to be released remotely — making it suited to trailer tail gates operated from the side or rear of a vehicle, gates where the operator cannot easily reach the bolt, and fabricated assemblies where the release point needs to be positioned away from the bolt body itself. The spring mechanism returns the bolt automatically after each release.
Typical Applications: Trailer tail gates, vehicle body enclosures, remote-release industrial gates, hard-to-reach access panels, fabricated transport equipment, agricultural vehicle bodies.
Technical Specs Body length: 77mm | Nose length: 27mm | Tail section: 22mm | Bolt diameter: 14mm | Weight: 0.49kg | Operation: Cable-operated | Finish: Zinc plated steel | Made in Birmingham, UK
