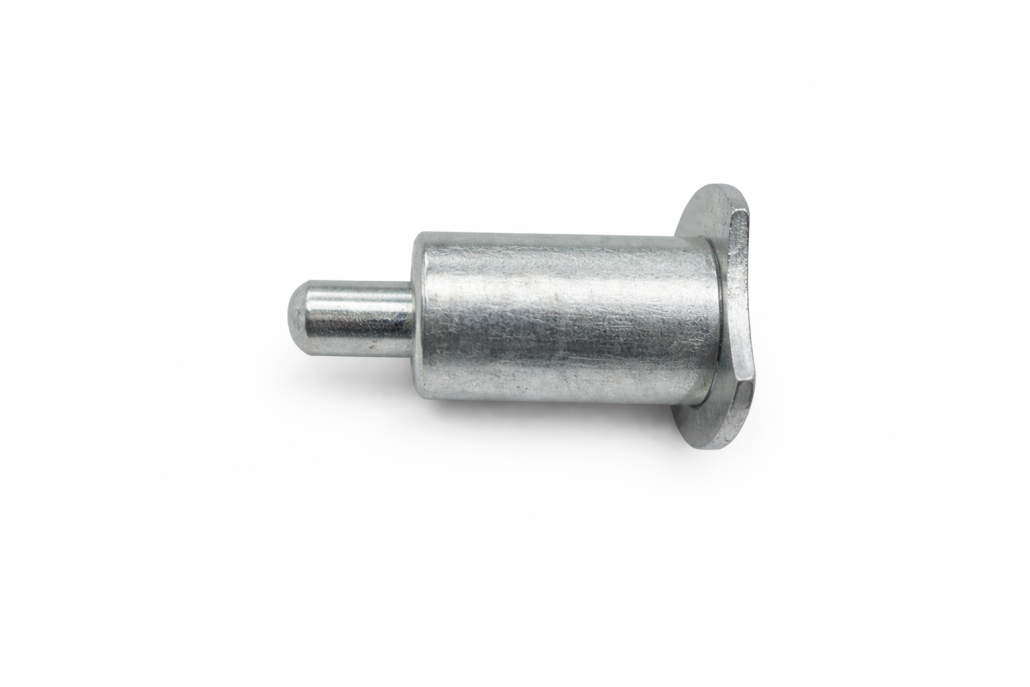

Spring Bullnose Locking Plunger ‘G’ – Zinc Plated Steel Weld-In Plunger

£7.78

Buy the Spring Bullnose Locking Plunger ‘G’ from Kirmell — a robust, spring-loaded locking plunger designed for secure positioning and retention in industrial and fabrication applications.

Manufactured from durable steel and finished with zinc plating for corrosion resistance, this plunger features a bullnose tip to provide smooth engagement while reducing surface wear. The integrated spring mechanism ensures consistent pressure, while the locking function allows the plunger to be held securely in position when engaged.

Designed specifically for weld-in installation, this locking plunger is ideal for machinery components, jigs, fixtures, access panels, gates, and fabricated assemblies where controlled positioning and positive locking are required. The precision-machined cylindrical body allows for clean integration into steel fabrications and long-term reliability. Checkout our full range of shoot bolts and plungers here.

Minimum Order Quantity: 12

Quantity	Discount (%)	Price
12 - 49	—	£7.78
50 - 99	10 %	£7.00
100 - 499	20 %	£6.22
500+	25 %	£5.84

Description

Features

Locking spring plunger with smooth bullnose tip
Zinc plated steel for durability and corrosion resistance
Positive locking function for secure positioning
Designed for weld-in applications
Ideal for jigs, fixtures & fabricated assemblies

Spring plungers are also known as:

Spring Plunger	Spring Loaded Plunger	Retractable Spring Plunger
Ball Spring Plunger	Ball & Spring Plunger	Micro Spring Plunger
Indexing Plunger	Locking Plunger	Self-Locking Plunger
Knob Style Retractable Spring Plunger	Twist Lock Plunger	Lever Style Plunger

Additional information

Product Type	Spring Bullnose Locking Plunger (‘G’ Type)
Body Diameter	25.5mm ±0.5mm
Body Length	42 mm
Locking Stem Length	15 mm
Mounting Flange Diameter	40 mm
Material	Steel Zinc Plated
