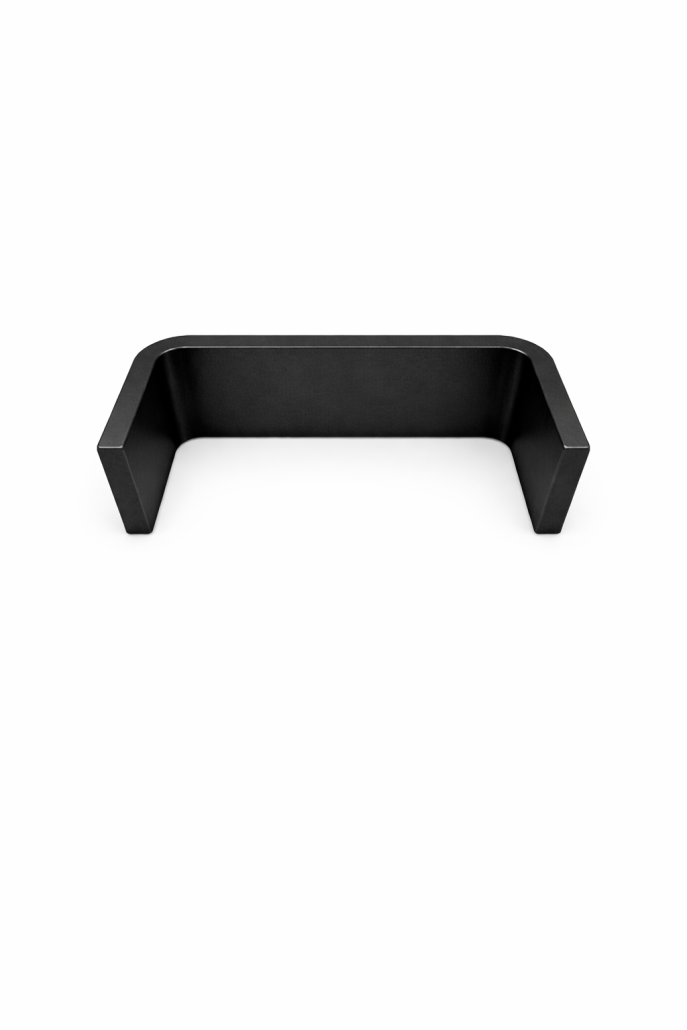

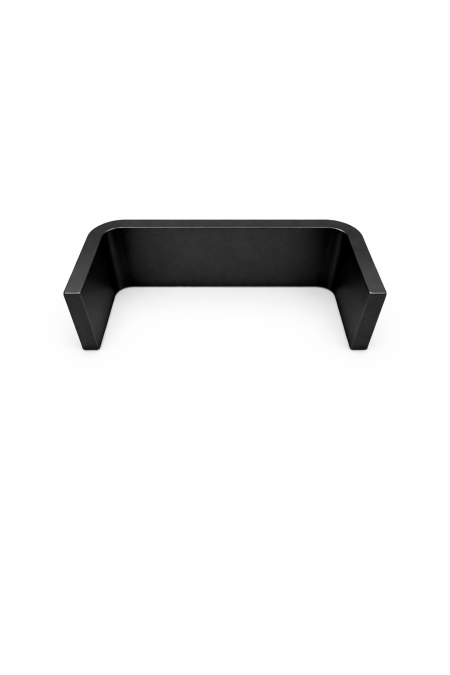

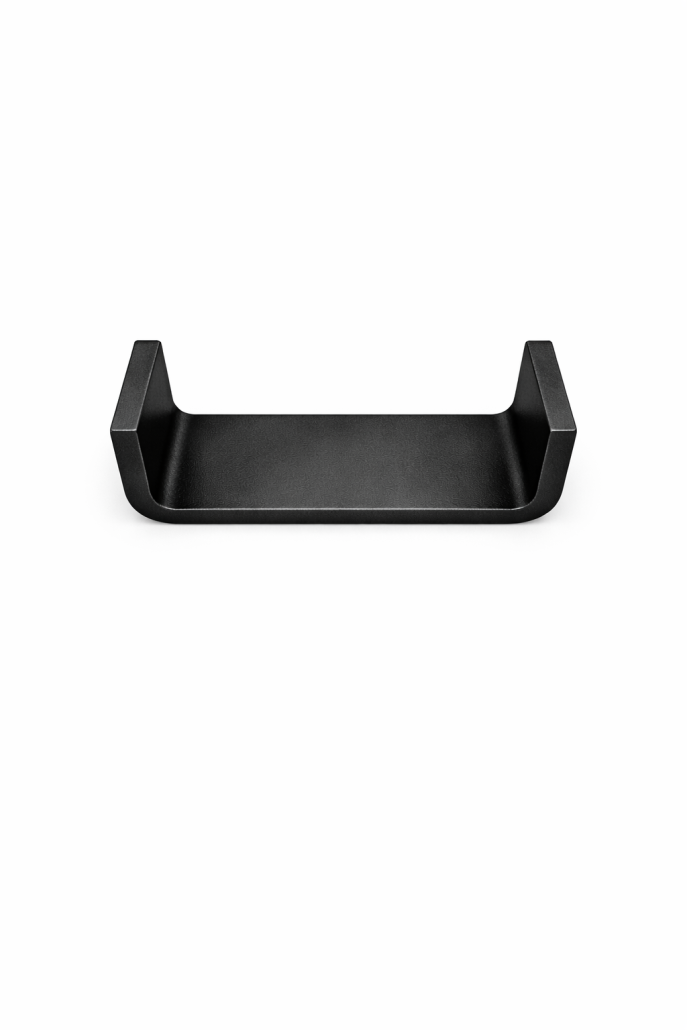

KPB10 Heavy Duty Steel U-Bracket – Long Channel Fixing Bracket, (67 × 25 mm, 4.7 mm Thick)
-
Manufactured in the UK -
4.7mm Pressed Steel
-
Bulk Discounts Available
-
Fast Nationwide Delivery
Weight per unit
• 0.1 kg
Minimum Order:
50 units
Total:
Each:
Each:
Weight per unit
• 0.1 kg
Minimum Order:
50 units
Total:
Each:
Each:
| Quantity | Discount (%) | Price |
|---|---|---|
| 50 | — | £0.98 |
| 100 | 10 % | £0.88 |
| 500+ | 20 % | £0.78 |
Are Also Known As
- Tube fixing bracket
- U-channel bracket
- Long U bracket
- U-clip bracket
- Heavy duty fixing bracket
- Tube mounting bracket
- Steel fixing bracket

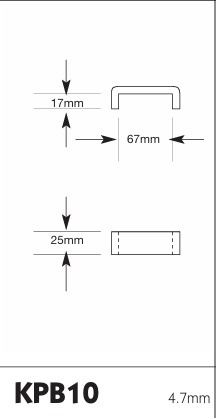

Technical specs
- Width: 67mm
- Height: 25mm
- Top return: 17mm
- Thickness: 4.7mm
Product Overview
The KPB10 is a long, heavy gauge pressed steel U-bracket with a 67 mm channel width and 4.7 mm wall thickness, making it the most substantial channel bracket in the standard U-bracket range. The extended 67 mm channel length provides a larger contact area along the section being fixed, distributing the fixing load over a longer span and improving resistance to twisting and pull-out compared to shorter brackets.
The 4.7 mm thickness is suited to load-bearing and high-stress applications where a standard 3 mm bracket would be insufficient including structural pallet gate joints, high-load racking assemblies, and fabricated steel frames subject to repeated impact or heavy static loads. Multiple pre-drilled holes along the channel allow flexible bolt positioning to suit different frame configurations and fixing centres, without the need for drilling on site. Available from 50 units with bulk pricing
