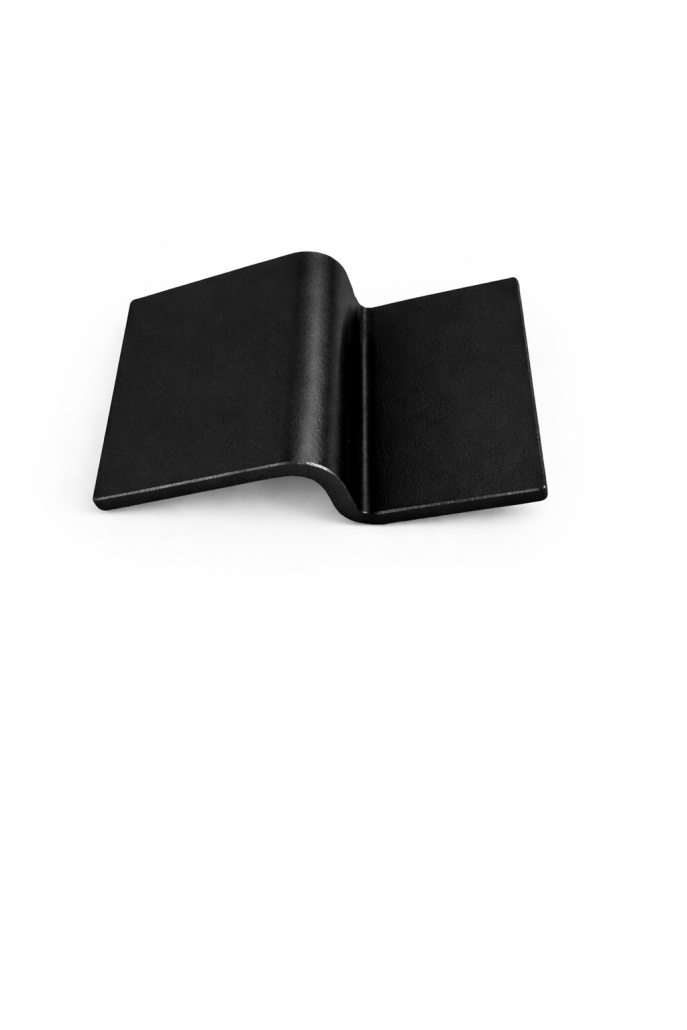

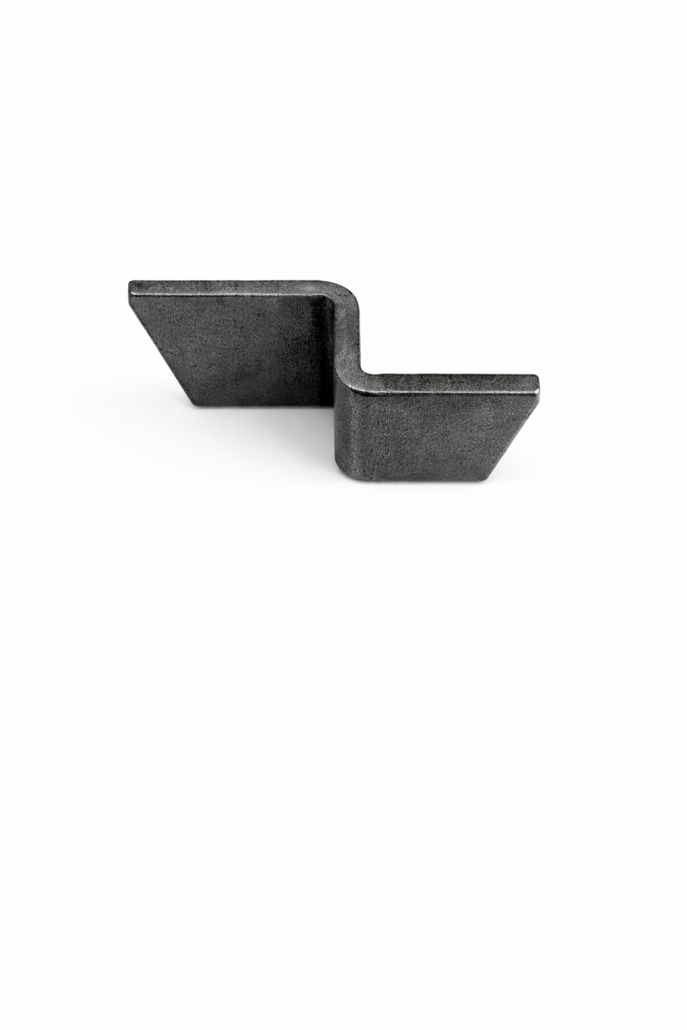

KPB5 Steel Offset Bracket – Z Shaped Bracket, (32 × 19 mm, 3 mm Thick)
-
Manufactured in the UK -
3mm Pressed Steel
-
Bulk Discounts Available
-
Fast Nationwide Delivery
Dispatch:
2-3 Days
›
Weight per unit
• 0.04 kg
Minimum Order:
50 units
Total:
Each:
Each:
Weight per unit
• 0.04 kg
Minimum Order:
50 units
Total:
Each:
Each:
| Quantity | Discount (%) | Price |
|---|---|---|
| 50 | — | £0.98 |
| 100 | 10 % | £0.88 |
| 500+ | 20 % | £0.78 |
Are Also Known As
- Offset fixing bracket
- Offset U bracket
- Channel bracket
- Stepped fixing bracket
- U-clip bracket
- Frame offset bracket
- Z-shaped bracket

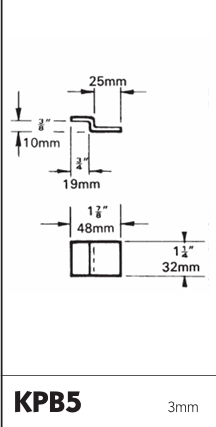

Technical specs
- Width: 32mm
- Length: 48mm
- Top return: 25mm
- Step depth: 19mm
- Thickness: 3mm
Product Overview
The KPB5 is a pressed steel offset U-bracket with a stepped profile that allows two frame members to be connected where they sit at different depths or planes. The 32 × 19 mm cranked channel creates a controlled offset between the two fixing faces, making it the right choice for joints where the sections being connected are not flush with each other and a flat or standard U bracket will not bridge the gap cleanly.
It is used in pallet gate frames, warehouse racking assemblies, and fabricated steel structures where depth offsets between members are common — particularly where rails meet posts at different planes, or where clearance is needed around hinges, latches, or adjacent components. Pressed from 3 mm mild steel with pre-drilled fixing holes, it installs quickly using standard bolts or screws without shimming or packing.
