Heavy Duty Keyhole Locking Shoot Bolt

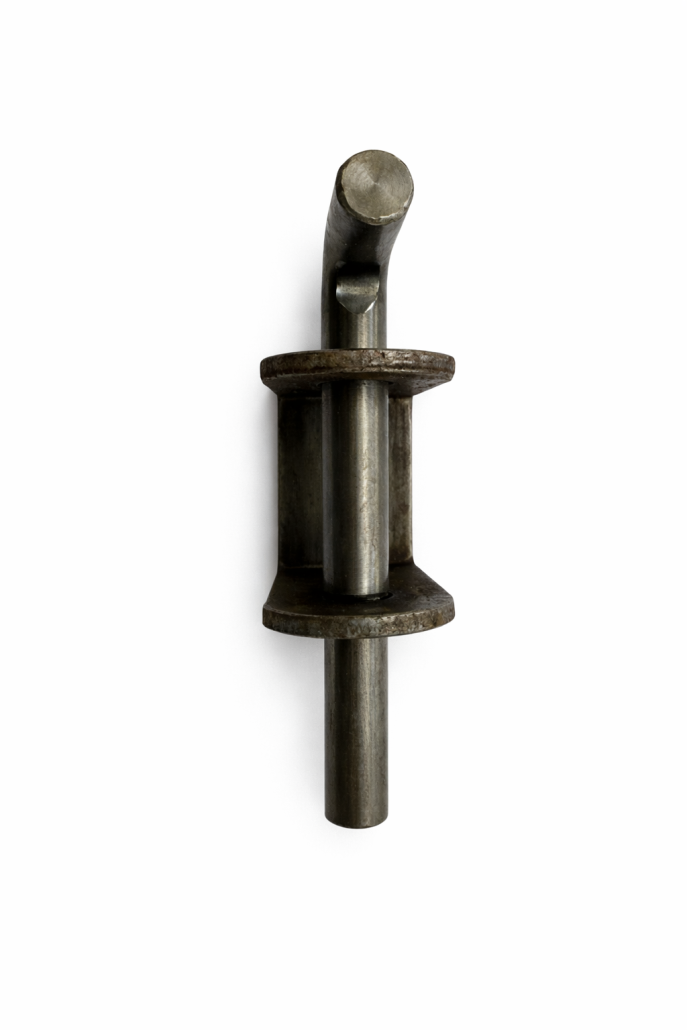

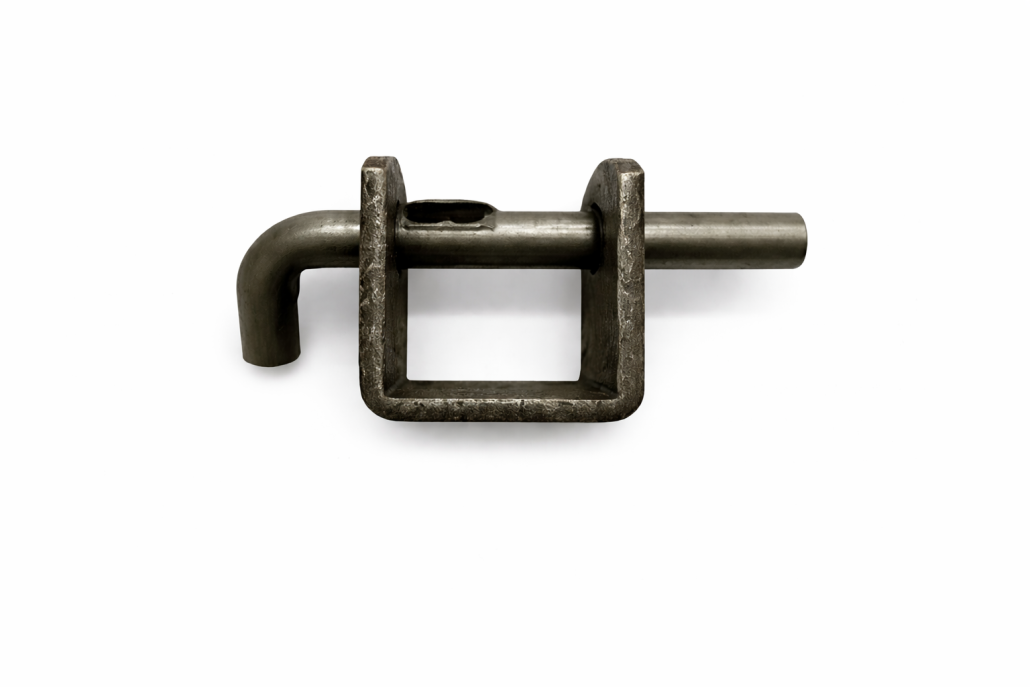

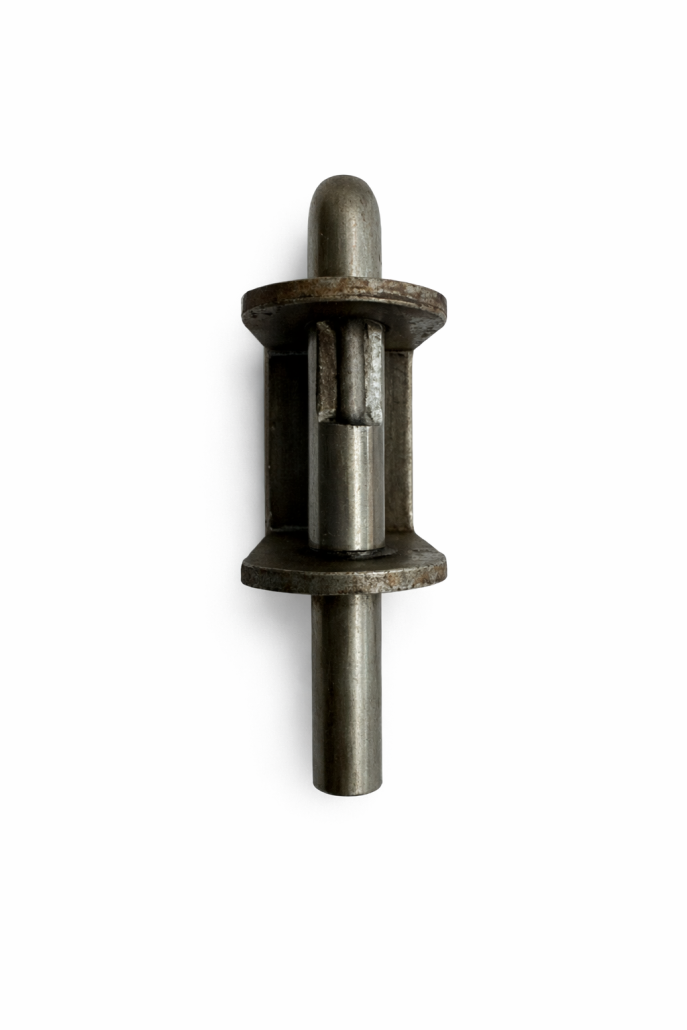

Heavy Duty Keyhole Locking Shoot Bolt – 120mm Steel Security Bolt

£6.50

Buy the Heavy Duty Keyhole Locking Shoot Bolt from Kirmell — a robust, secure locking solution designed for industrial doors, gates, frames, and access panels where added security is required.

Manufactured from solid steel, this shoot bolt features a keyhole locking slot that allows the bolt to be padlocked in the engaged position, providing enhanced security against unauthorised access. The heavy-duty construction and precision-formed body ensure strength, durability, and reliable performance in demanding environments.

Designed for welded or bolted installation, this locking shoot bolt is ideal for metal fabrications, security doors, storage units, plant enclosures, and access control applications. The chamfered bolt end ensures smooth engagement, while the compact body design allows for straightforward fitting within fabricated assemblies. Explore our full range of shoot bolt products here.

Minimum Order Quantity: 12

Quantity Discount (%) Price
12 - 49 — £6.50
50 - 99 10 % £5.85
100 - 499 20 % £5.20
500+ 25 % £4.88
×
Total:
Category: Shoot Bolts & Plungers
  • Description
  • Additional information

Description

Features

  • Heavy-duty keyhole locking shoot bolt for secure applications
  • Allows padlocking in the locked position for added security
  • Solid steel construction for strength and durability
  • Chamfered bolt end for smooth engagement
  • Suitable for welded or bolted installations

Shoot bolts are also known as:

Door Shoot BoltDoor Shoot BoltsShoot Bolt Door
Shoot Bolt Door Locking SystemShoot Bolt Locks for DoorsFrench Door Shoot Bolt Lock
Cable-operated spring-loaded shoot boltSpring Loaded Shot BoltSpring Loaded Bolt

Spring plungers are also known as:

Spring PlungerSpring Loaded PlungerRetractable Spring Plunger
Ball Spring PlungerBall & Spring PlungerMicro Spring Plunger
Indexing PlungerLocking PlungerSelf-Locking Plunger
Knob Style Retractable Spring PlungerTwist Lock PlungerLever Style Plunger

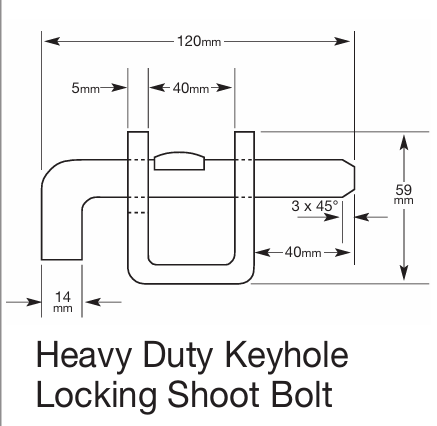

Additional information

Product Type

Heavy Duty Keyhole Locking Shoot Bolt

Overall Length

120 mm

Body Width

40 mm

Body Height

59 mm

Bolt End

Chamfered (3 × 45°)

Body Thickness

5 mm

Bolt Offset

14 mm
