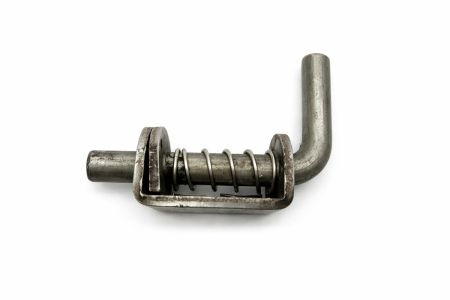

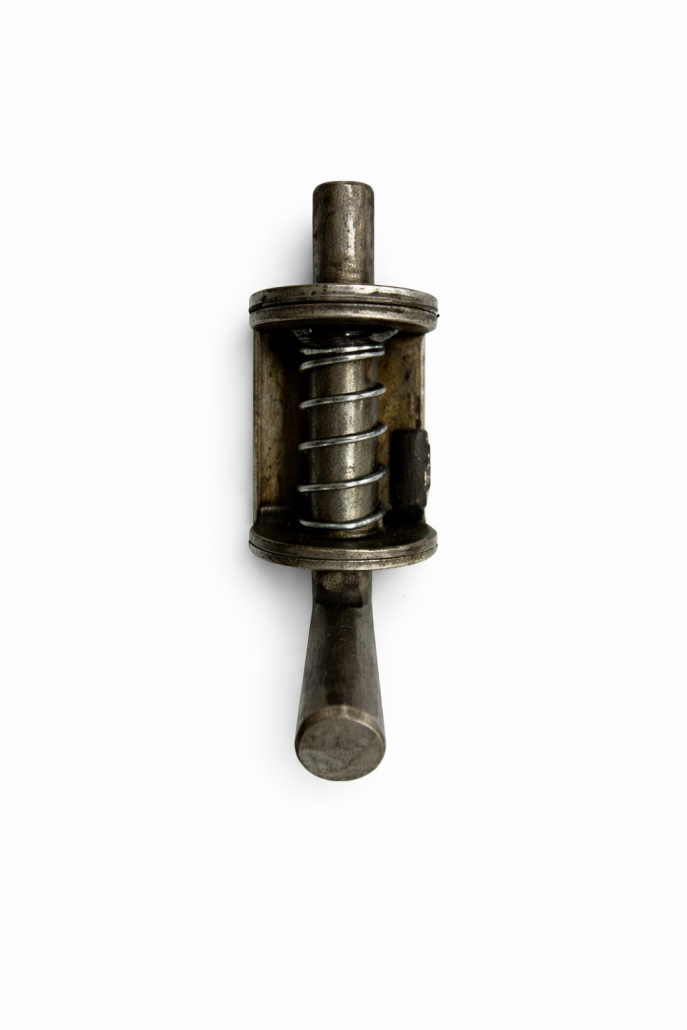

Non-Locking Mini Spring Shoot Bolt – Compact Zinc Plated Bolt with Coil Spring

£4.75

Buy the Non-Locking Mini Spring Shoot Bolt from Kirmell — a compact, spring-loaded locking solution designed for light-duty doors, panels, enclosures, and access points where space is limited and quick engagement is required.

Manufactured from durable steel and finished with zinc plating for corrosion resistance, this mini shoot bolt features a 10mm diameter bolt with an integrated coil spring mechanism to provide smooth operation and automatic return. Its compact body and short overall length make it ideal for confined installations while still offering dependable performance.

Designed for welded or bolted installation, this non-locking mini shoot bolt is well suited for electrical enclosures, machinery guards, access hatches, cabinets, and lightweight fabricated frames. Supplied with a matching keeper plate to ensure accurate alignment and reliable engagement. Explore our full range of shoot bolt products here.

Minimum Order Quantity: 12

Quantity Discount (%) Price
12 - 49 — £4.75
50 - 99 10 % £4.28
100 - 499 20 % £3.80
500+ 25 % £3.56
×
Total:
Category: Shoot Bolts & Plungers
  • Description
  • Additional information

Description

Features

  • Compact non-locking spring shoot bolt for light-duty applications
  • Zinc plated steel construction for corrosion resistance
  • Integrated coil spring for smooth automatic return
  • Space-saving design ideal for confined installations
  • Supplied with a matching keeper plate

Shoot bolts are also known as:

Door Shoot BoltDoor Shoot BoltsShoot Bolt Door
Shoot Bolt Door Locking SystemShoot Bolt Locks for DoorsFrench Door Shoot Bolt Lock
Cable-operated spring-loaded shoot boltSpring Loaded Shot BoltSpring Loaded Bolt

Spring plungers are also known as:

Spring PlungerSpring Loaded PlungerRetractable Spring Plunger
Ball Spring PlungerBall & Spring PlungerMicro Spring Plunger
Indexing PlungerLocking PlungerSelf-Locking Plunger
Knob Style Retractable Spring PlungerTwist Lock PlungerLever Style Plunger

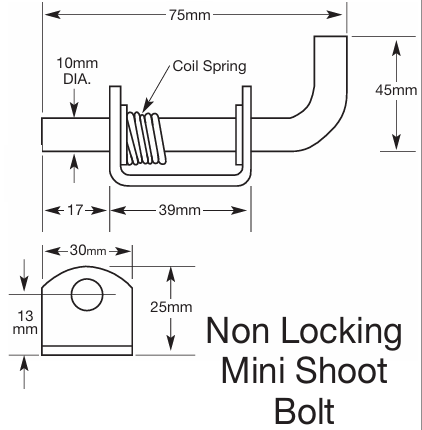

Additional information

Product Type

Non-Locking Mini Spring Shoot Bolt

Bolt Diameter

10 mm

Overall Length

75 mm

Body Width

39 mm

Bolt Projection

17mm

Handle Height

45mm

Keeper Plate Size

30mm (W) × 25mm (H)
