Spring Shoot Bolt E Type – 165mm Zinc Plated Spring Loaded Bolt
-
Manufactured in the UK -
Zinc Plated Steel
-
Bulk Discounts Available
-
Fast Nationwide Delivery
Dispatch:
2-3 Days
›
Weight per unit
• 0.3 kg
Minimum Order:
12 units
Total:
Each:
Each:
Weight per unit
• 0.3 kg
Minimum Order:
12 units
Total:
Each:
Each:
| Quantity | Discount (%) | Price |
|---|---|---|
| 12 | — | £6.98 |
| 50 | 10 % | £6.28 |
| 100 | 20 % | £5.58 |
| 500+ | 25 % | £5.24 |
Are Also Known As
- Door Shoot Bolt
- Barrel bolt
- Tower bolt
- Spring Shoot Bolt
- Pad bolt
- Sliding bolt
- Panel Bolt

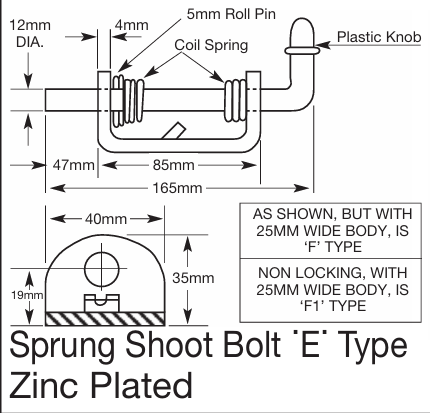

Technical specs
- Overall size: 165mm
- Body length: 85mm
- Body width: 40mm
- Bolt diameter: 12mm
- Body thickness: 4mm
Product Overview
Buy the Spring Shoot Bolt E Type direct from Kirmell — the largest and most heavy duty spring shoot bolt in the range, built for external gates, double doors, and large industrial access panels where the fixing must hold firm under load, vibration, and daily use.
Why Choose the E Type The E Type has a 40mm wide body — the broadest mounting plate in the range. On heavy fabricated frames, box section gates, and structural steel enclosures, that wider footprint means more fixing points, a more stable base, and significantly less movement over time. The formed handle and plastic grip knob ensure the bolt is operated correctly every time, even in cold or wet conditions, rather than being forced or kicked shut.
Typical Applications Heavy external metal gates, double doors, large access panels, industrial enclosures, machinery guards, agricultural and equestrian gates, fabricated steel frames.
Also Known As: Spring loaded animal bolt, spring gate bolt, spring loaded bolt, animal bolt.
Technical Specs Overall size: 165mm | Body width: 40mm | Bolt diameter: 12mm | Body thickness: 4mm | Finish: Zinc plated steel | Made in Birmingham, UK
Installation Suitable for welded or bolted installation on metal or wooden gates, steel frames, and fabricated industrial equipment. Left and right hand orientations available.
