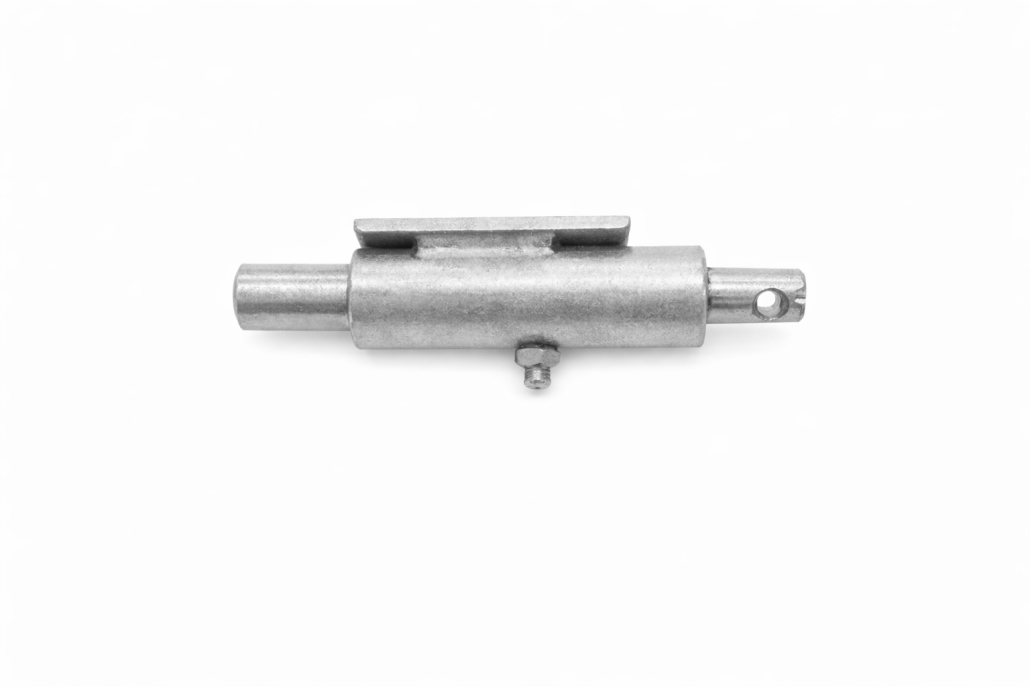

Spring Shoot Bolt Z/P Mini P Type – Zinc Plated Cable Operated Spring Loaded Bolt
-
Manufactured in the UK -
Zinc Plated Steel
-
Bulk Discounts Available
-
Fast Nationwide Delivery
Dispatch:
1-2 Days
›
Weight per unit
• 0.15 kg
Minimum Order:
12 units
Total:
Each:
Each:
Weight per unit
• 0.15 kg
Minimum Order:
12 units
Total:
Each:
Each:
| Quantity | Discount (%) | Price |
|---|---|---|
| 12 | — | £5.50 |
| 50 | 10 % | £4.95 |
| 100 | 20 % | £4.40 |
| 500+ | 25 % | £4.13 |
Are Also Known As
- Spring Loaded Cable Shoot Bolt
- Type P Cable-Operated Plunger Shoot Bolt
- Steel Cable-Operated Shoot Bolt
- Zinc Plated Cable Shoot Bolt
- Spring Loaded Bolt Latch
- Mini Spring Loaded Cable Bolt
- Small Cable Operated Gate Bolt
Technical specs
- Body length: 60mm
- Nose length: 24mm
- Tail section: 18mm
- Bolt diameter: 14mm
Product Overview
Buy the Mini Cable-Operated Spring Shoot Bolt direct from Kirmell — a compact zinc plated steel cable-operated spring-loaded bolt for smaller trailer doors, compact access panels, lightweight fabricated assemblies, and installations where a full-size cable-operated bolt is too large for the application.
Why Choose the Mini Cable-Operated P Type? At 60mm body length, this is the compact version of the cable-operated shoot bolt suited to lighter structures and smaller panels where the 77mm standard P type would be oversized or too heavy. The bolt is operated by cable rather than by hand directly on the bolt the cable attachment allows release from a position away from the bolt itself, making it practical for trailer tailgates, access hatches, and fabricated assemblies where direct access to the bolt is restricted. The top-mounted mounting plate allows both welded and bolted installation onto frames, gates, and panels.
Typical Applications: Smaller trailer tail gates, compact agricultural vehicle doors, lightweight fabricated access panels, horse box and livestock trailer hatches, small gate remote release mechanisms, compact industrial enclosures with restricted access.
Technical Specs Body length: 60mm | Nose length: 24mm | Tail section: 18mm | Bolt diameter: 14mm | Weight: 0.15kg | Operation: Cable-operated | Mounting: Top-mounted plate — weld or bolt | Finish: Zinc plated steel | Made in Birmingham, UK
