KPB13 Steel Z-Spacer Bracket – RHS Fixing Bracket for 60mm Box Section, (51 × 25 mm)
-
Manufactured in the UK -
3mm Pressed Steel
-
Bulk Discounts Available
-
Fast Nationwide Delivery
Dispatch:
2-3 Days
›
Weight per unit
• 0.09 kg
Minimum Order:
50 units
Total:
Each:
Each:
Weight per unit
• 0.09 kg
Minimum Order:
50 units
Total:
Each:
Each:
| Quantity | Discount (%) | Price |
|---|---|---|
| 50 | — | £0.98 |
| 100 | 10 % | £0.88 |
| 500+ | 20 % | £0.78 |
Are Also Known As
- Tube fixing bracket
- Steel Zig Zag Bracket
- Channel bracket
- Structural fixing bracket
- Steel Zig Zag Spacer Bracket
- Offset bracket
- Z-shaped bracket

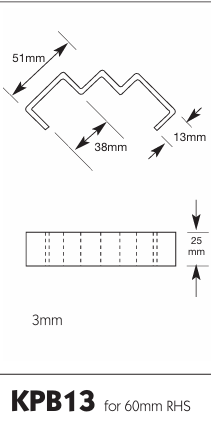

Technical specs
- Width: 25mm
- Height: 51mm
- Internal span shown: 38mm
- Return / leg: 13mm
- Thickness: 3mm
Product Overview

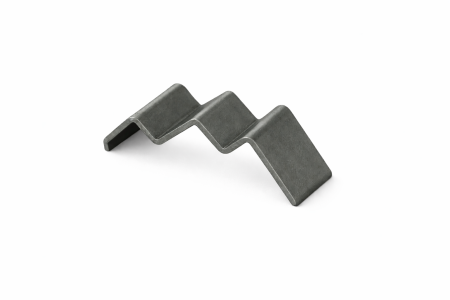

The KPB13 is a pressed steel Z-profile spacer bracket designed for use with 60 mm RHS (rectangular hollow section) tube. The stepped zigzag profile creates a controlled offset between the two fixing faces, allowing frame members to be connected where they sit at different planes or depths without the need for shimming, packing, or custom fabrication.
It is used in pallet gate frame construction, fabricated steel assemblies, and racking systems where 60 mm RHS is the standard section and components need to be joined across a depth offset. The double-fixing profile locks onto the RHS section on both sides, resisting movement and maintaining alignment under load. Pressed from 3 mm mild steel with pre-drilled fixing holes for bolt or screw fixing.
