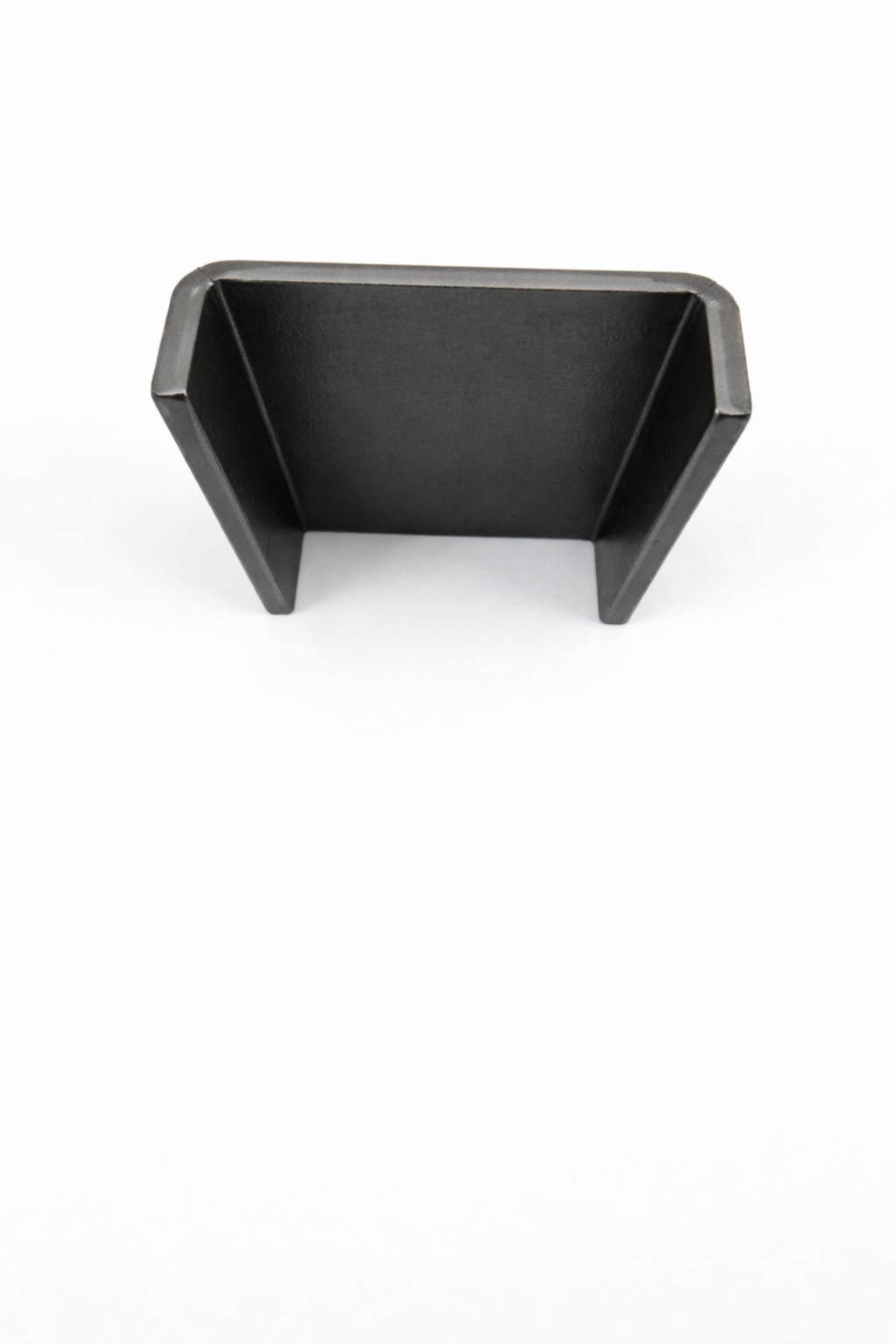

KPB14 Steel Z-Bracket, RHS Fixing Bracket for 60mm Box Section (51 × 38 mm, 3 mm Thick)
-
Manufactured in the UK -
3mm Pressed Steel
-
Bulk Discounts Available
-
Fast Nationwide Delivery
Dispatch:
2-3 Days
›
Weight per unit
• 0.11 kg
Minimum Order:
50 units
Total:
Each:
Each:
Weight per unit
• 0.11 kg
Minimum Order:
50 units
Total:
Each:
Each:
| Quantity | Discount (%) | Price |
|---|---|---|
| 50 | — | £0.98 |
| 100 | 10 % | £0.88 |
| 500+ | 20 % | £0.78 |
Are Also Known As
- Tube fixing bracket
- U-channel bracket
- Zig zag bracket
- Structural fixing bracket
- Stepped bracket
- 60mm RHS bracket
- Z frame bracket
Technical specs
- Width: 38mm
- Height: 51mm
- Internal span shown: 38mm
- Return / leg: 13mm
- Thickness: 3mm
Product Overview
The KPB14 is a pressed steel Z-bracket with a 51 × 38 mm stepped profile, designed to connect frame members that sit at different depths or planes when using 60 mm RHS (rectangular hollow section) tube. The Z-shape provides two parallel fixing faces offset by 38 mm, making it the correct bracket for joints where components are not co-planar and a flat bracket will not span the depth difference.
It is used in pallet gate fabrication, warehouse racking construction, and fabricated steel assemblies where 60 mm RHS is the specified section and a stepped connection is required between members. The open-sided design allows the bracket to be positioned directly over the RHS section without sliding it from the end, which makes it practical for on-site installation and retrofitting into existing frame structures
