KPB6 Heavy Duty Steel U-Bracket – Thick U-Clip Fixing Bracket, (25 × 19 mm, 5 mm Thick)
-
Manufactured in the UK -
5mm Pressed Steel
-
Bulk Discounts Available
-
Fast Nationwide Delivery
Dispatch:
2-3 Days
›
Weight per unit
• 0.05 kg
Minimum Order:
50 units
Total:
Each:
Each:
Weight per unit
• 0.05 kg
Minimum Order:
50 units
Total:
Each:
Each:
| Quantity | Discount (%) | Price |
|---|---|---|
| 50 | — | £0.98 |
| 100 | 10 % | £0.88 |
| 500+ | 20 % | £0.78 |
Are Also Known As
- Heavy duty U bracket
- U-channel bracket
- Heavy duty channel bracket
- U shaped bracket
- U-clip bracket
- Heavy duty fixing bracket
- Steel U clip

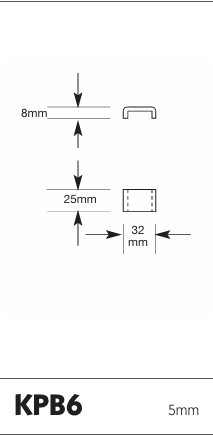

Technical specs
- Width: 25mm
- Length: 32mm
- Top return: 8mm
- Thickness: 5mm
Product Overview

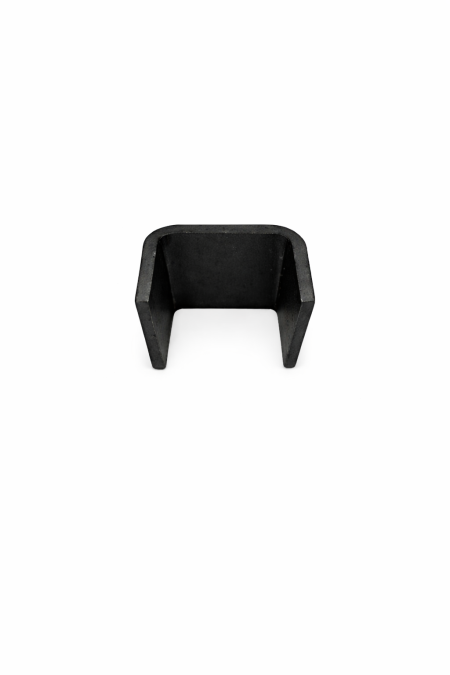

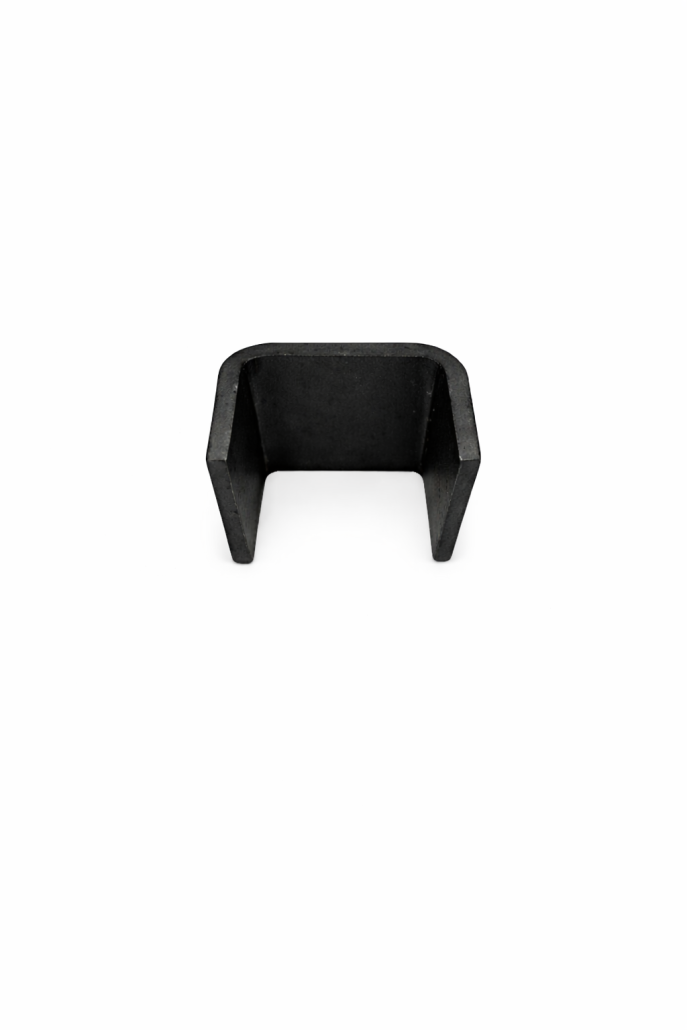

The KPB6 is a heavy duty pressed steel U-bracket with a flat 25 × 19 mm channel profile and 5 mm wall thickness significantly more rigid than the standard 3 mm brackets in this range. The extra thickness makes it the correct choice for high-load or high-cycle applications where a standard bracket would flex, deform, or loosen over time under repeated stress.
It is used in demanding industrial gate assemblies, structural pallet frames, and fabricated steel fixtures where the joint is subject to regular impact, vibration, or heavy static load. The flat U-channel profile provides a clean three-sided grip on flat or rectangular sections, and the pre-drilled fixing holes accept standard bolts for a secure, bolt-tight connection. At 0.05 kg per unit it remains compact and easy to handle in volume assembly, while the 5 mm steel ensures the bracket holds its shape and maintains joint integrity throughout its service life.
