KPB4 Double Tube Clamp Bracket – 60.3 mm CHS Tube Fixing Bracket (44 × 38 × 25 mm)
-
Manufactured in the UK -
3mm Pressed Steel
-
Bulk Discounts Available
-
Fast Nationwide Delivery
Dispatch:
2-3 Days
›
Weight per unit
• 0.09 kg
Minimum Order:
50 units
Total:
Each:
Each:
Weight per unit
• 0.09 kg
Minimum Order:
50 units
Total:
Each:
Each:
| Quantity | Discount (%) | Price |
|---|---|---|
| 50 | — | £0.98 |
| 100 | 10 % | £0.88 |
| 500+ | 20 % | £0.78 |
Are Also Known As
- Tube fixing bracket
- U-channel bracket
- Channel bracket
- Tube fixing bracket
- U-clip bracket
- Large tube clamp bracket
- Saddle clamp bracket

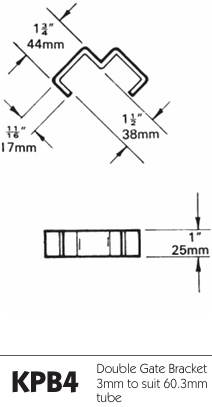

Technical specs
- Overall top length: 44mm
- Side lengths: 17mm and 38mm
- Strip width: 25mm
- Thickness: 3mm
- Suits: 60.3mm tube
Product Overview
The KPB4 is a double-sided pressed steel tube clamp bracket designed to suit 60.3 mm CHS (circular hollow section) tube. The curved saddle profile is precision-formed to the tube diameter, seating flush against both sides of the tube and providing a mechanically stable fixing that eliminates the movement and rattle common with flat brackets used on round sections.
At 44 mm across the top with side lengths of 17 mm and 38 mm, the KPB4 is built for the larger contact area that 60.3 mm tube requires. It is used in pallet gate frame construction, warehouse racking systems, and fabricated steel assemblies where 60.3 mm round tube is the specified section size. The double-sided saddle grip distributes load evenly across both tube faces, keeping the joint secure under the repeated handling and load cycles typical of high-use industrial environments.
