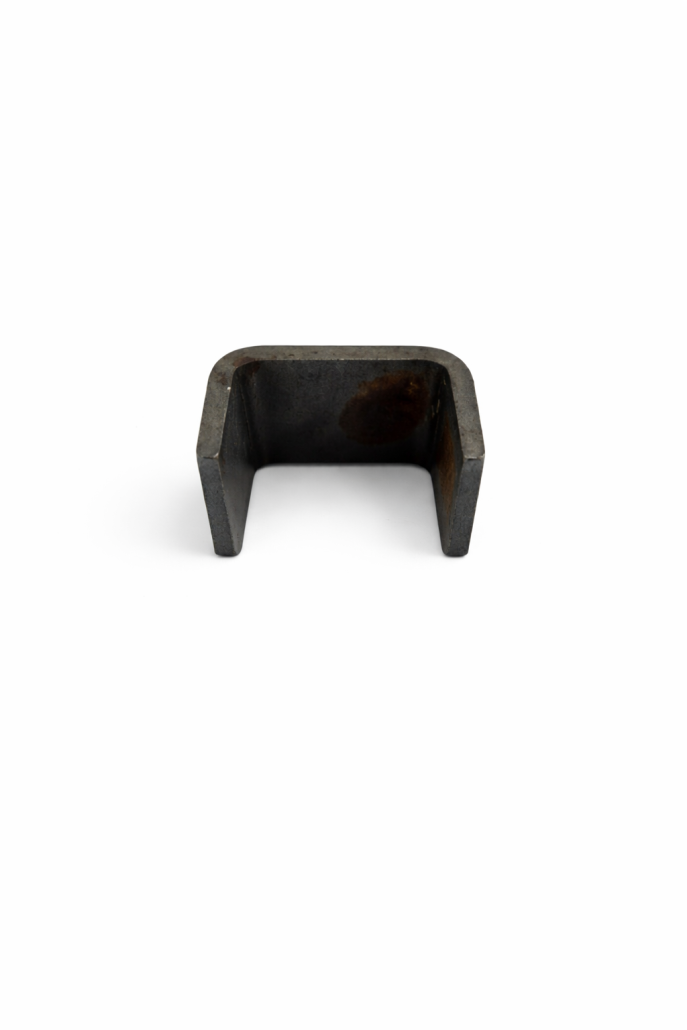

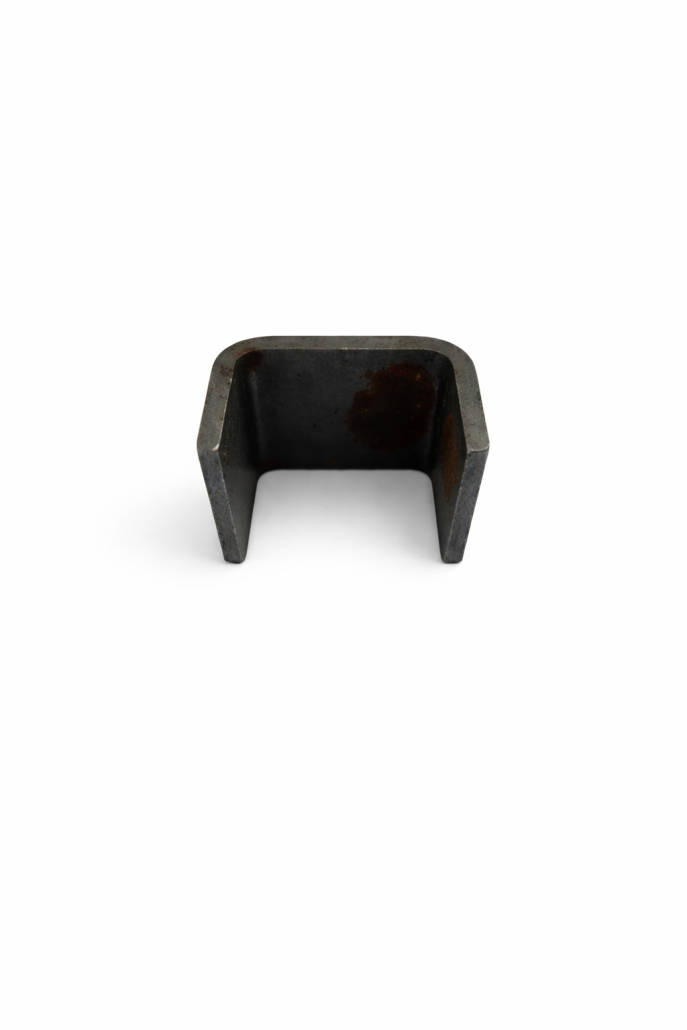

KPB8 Steel Square U-Bracket – Equal Arm Channel Fixing Bracket, (25 × 25 mm, 3 mm Thick)
-
Manufactured in the UK -
3mm Pressed Steel
-
Bulk Discounts Available
-
Fast Nationwide Delivery
Dispatch:
2-3 Days
›
Weight per unit
• 0.03 kg
Minimum Order:
50 units
Total:
Each:
Each:
Weight per unit
• 0.03 kg
Minimum Order:
50 units
Total:
Each:
Each:
| Quantity | Discount (%) | Price |
|---|---|---|
| 50 | — | £0.98 |
| 100 | 10 % | £0.88 |
| 500+ | 20 % | £0.78 |
Are Also Known As
- Tube fixing bracket
- U-channel bracket
- Channel bracket
- Channel fixing bracket
- U-shaped bracket
- Tube mounting bracket
- Structural fixing bracket

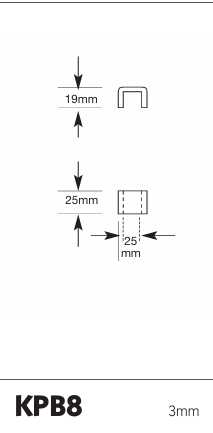

Technical specs
- Width: 25mm
- Length: 25mm
- Top return: 15mm
- Thickness: 3mm
Product Overview
The KPB8 is a compact pressed steel U-bracket with equal 25 × 25 mm arms, giving it a symmetrical square profile that grips flat bar, square section, or narrow tube sections on three sides. The equal arm dimensions mean the bracket sits centrally and evenly on the section being fixed, making it particularly well-suited to square tube and flat bar where a consistent, balanced clamping force is needed.
It is used in pallet gate frames, warehouse racking assemblies, and fabricated steel structures where a small, reliable channel bracket is needed for light to medium-duty fixing applications. The low weight of 0.03 kg per unit makes it easy to handle in volume assembly, and the pre-drilled holes accept standard bolts or screws for quick installation. Pressed from 3 mm mild steel to consistent tolerances. Available in bulk discounts.
