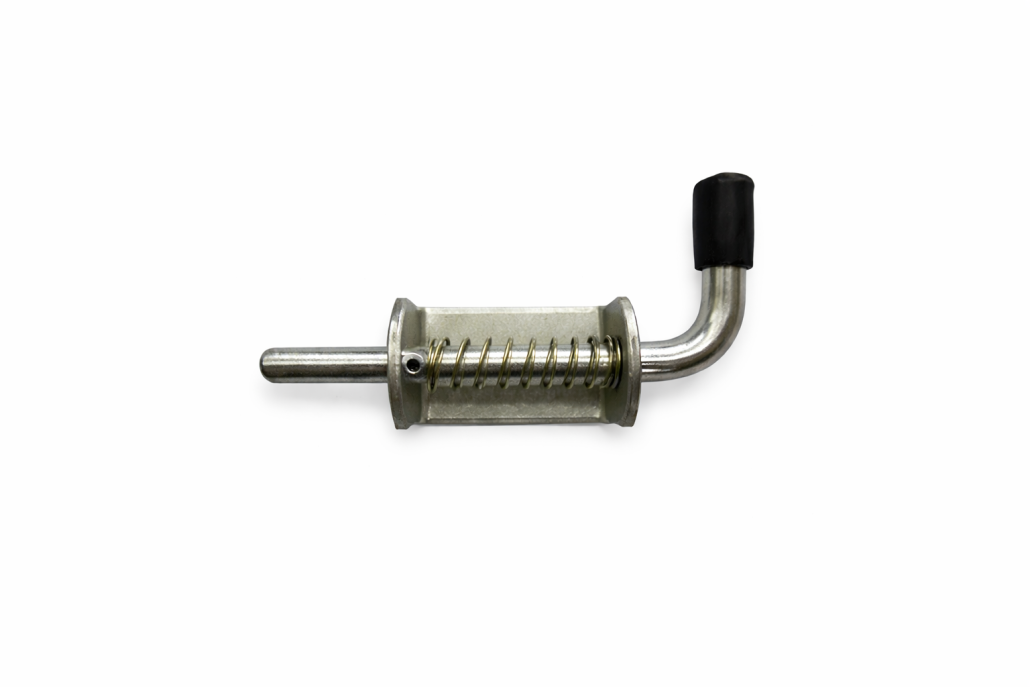

Spring Shoot Bolt J Type – 140mm Zinc Plated Spring Loaded Bolt
-
Manufactured in the UK -
Zinc Plated Steel
-
Bulk Discounts Available
-
Fast Nationwide Delivery
Dispatch:
1-2 Days
›
Weight per unit
• 0.34 kg
Minimum Order:
12 units
Total:
Each:
Each:
Weight per unit
• 0.34 kg
Minimum Order:
12 units
Total:
Each:
Each:
| Quantity | Discount (%) | Price |
|---|---|---|
| 12 | — | £7.50 |
| 50 | 10 % | £6.75 |
| 100 | 20 % | £6.00 |
| 500+ | 25 % | £5.63 |
Are Also Known As
- Door Shoot Bolt
- Barrel bolt
- Tower Bolt
- Spring Shoot Bolt
- Spring-Loaded Bolt Latch
- Sliding bolt
- Panel Bolt

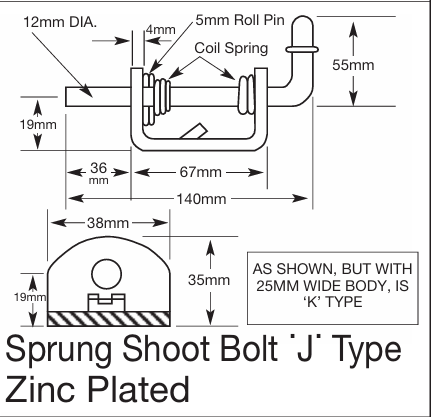

Technical specs
- Overall size: 140mm
- Body length: 67mm
- Body width: 38mm
- Bolt diameter: 12mm
- Body thickness: 4mm
Product Overview
Buy the Spring Shoot Bolt J Type direct from Kirmell — a compact 140mm spring shoot bolt with a wide 38mm body, for applications where a shorter bolt length is sufficient but a solid, stable mounting base is still essential.
Why Choose the J Type The J Type is the wider of the two 140mm configurations in the range. Where the E and F Types provide a longer 165mm throw, the J Type suits applications where the receiver is closer but the fixing still needs to feel solid and permanent on heavier steel frames and structural metalwork. More mounting footprint than the K Type, less bolt length than the E and F.
Typical Applications Internal gates, machine guarding, fabricated cages, industrial enclosures, access panels on production equipment, structural steel assemblies.
Also Known As Spring gate bolt, spring loaded animal bolt, spring loaded bolt, animal bolt.
Technical Specs Overall size: 140mm | Body width: 38mm | Bolt diameter: 12mm | Body thickness: 4mm | Finish: Zinc plated steel | Made in Birmingham, UK
