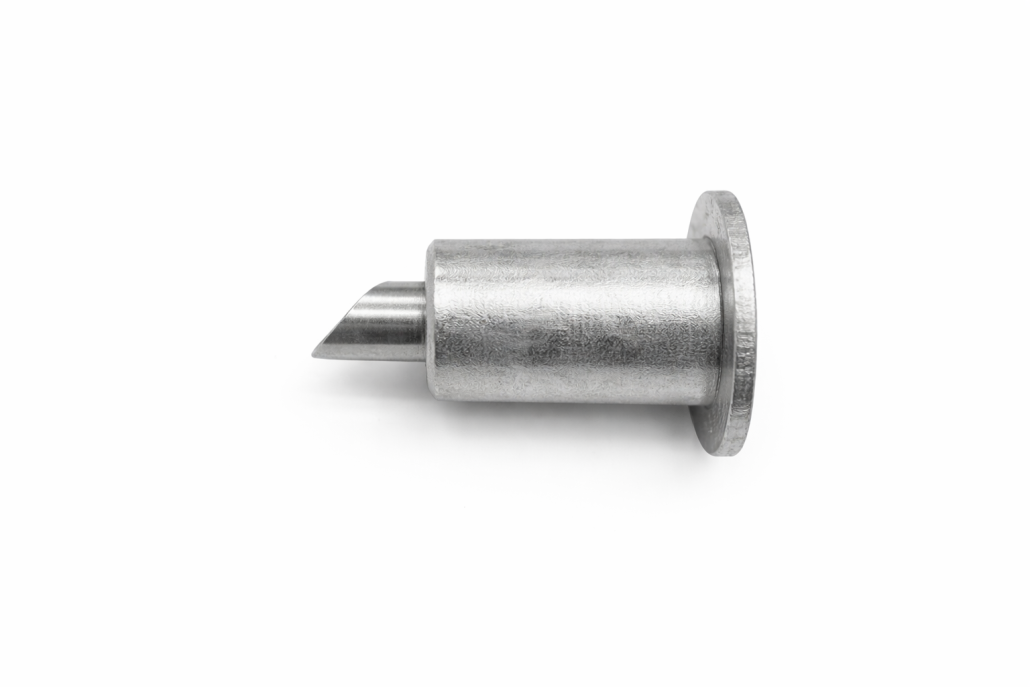

Spring 45° Chamfered Timed Plunger ‘I’ – Zinc Plated Steel Weld-In Plunger

£7.98

Buy the Spring 45° Chamfered Timed Plunger ‘I’ from Kirmell a precision-engineered spring plunger designed for accurate positioning and controlled engagement in industrial and fabrication applications.

Manufactured from durable steel and finished with zinc plating for corrosion resistance, this plunger features a 45° chamfered tip to ensure smooth entry and positive location when engaging with mating components. The timed design allows controlled orientation during installation, making it ideal for applications requiring precise alignment and repeatable positioning.

Designed for weld-in installation, this spring plunger is well suited for jigs, fixtures, machinery assemblies, access panels, and fabricated components where reliable spring-loaded engagement is essential. The robust cylindrical body ensures consistent performance and long service life under demanding conditions. Checkout our full range of shoot bolts and plungers here.

Minimum Order Quantity: 12

Description

Features

Spring-loaded plunger with 45° chamfered tip
Timed design for controlled orientation and alignment
Zinc plated steel for durability and corrosion resistance
Designed for weld-in applications
Ideal for precision positioning and repeatable engagement

Shoot bolts are also known as:

Door Shoot Bolt	Door Shoot Bolts	Shoot Bolt Door
Shoot Bolt Door Locking System	Shoot Bolt Locks for Doors	French Door Shoot Bolt Lock
Cable-operated spring-loaded shoot bolt	Spring Loaded Shot Bolt	Spring Loaded Bolt

Spring plungers are also known as:

Spring Plunger	Spring Loaded Plunger	Retractable Spring Plunger
Ball Spring Plunger	Ball & Spring Plunger	Micro Spring Plunger
Indexing Plunger	Locking Plunger	Self-Locking Plunger
Knob Style Retractable Spring Plunger	Twist Lock Plunger	Lever Style Plunger

Additional information

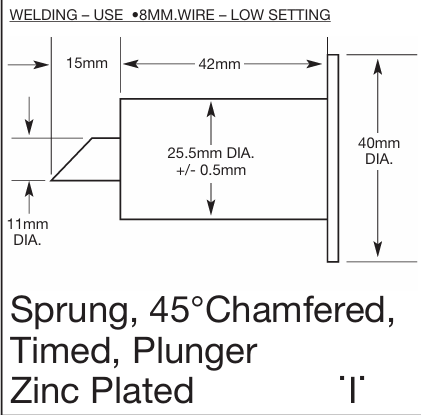

Product Type	Spring 45° Chamfered Timed Plunger (‘I’ Type)
Plunger Tip Diameter	11 mm
Body Diameter	25.5mm ±0.5mm
Body Length	42 mm
Plunger Projection	15 mm
Mounting Flange Diameter	40 mm
Material	Steel Zinc Plated
Operation	Spring Loaded

Spring 45° Chamfered Timed Plunger ‘I’ – Zinc Plated Steel Weld-In Plunger

Description

Additional information

You may also like…

Non-Locking Mini Spring Shoot Bolt – Compact Zinc Plated Bolt with Coil Spring

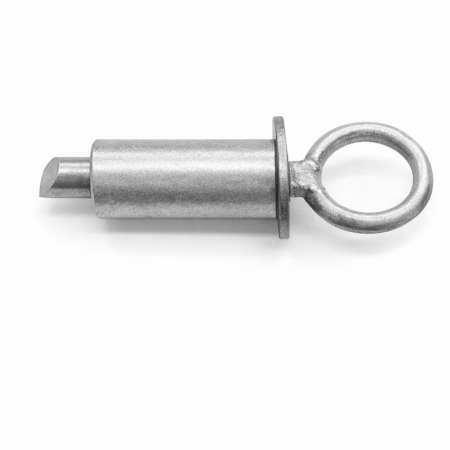

Spring 45° Chamfered Timed Plunger ‘I’ with Ring – Zinc Plated Steel Weld-In Plunger
